Stud Cam Follower 8mm ID, 19mm OD
- RS Stock No.:
- 471-314
- Brand:
- RS PRO
On back order for despatch 29/04/2024, delivery within 10 working days from despatch date.
Added
Price (ex. GST) Each
$45.96
(exc. GST)
$50.56
(inc. GST)
| Units | Per unit |
| 1 - 5 | $45.96 |
| 6 - 29 | $43.66 |
| 30 + | $41.49 |
- RS Stock No.:
- 471-314
- Brand:
- RS PRO
Technical data sheets
Legislation and Compliance
Product Details

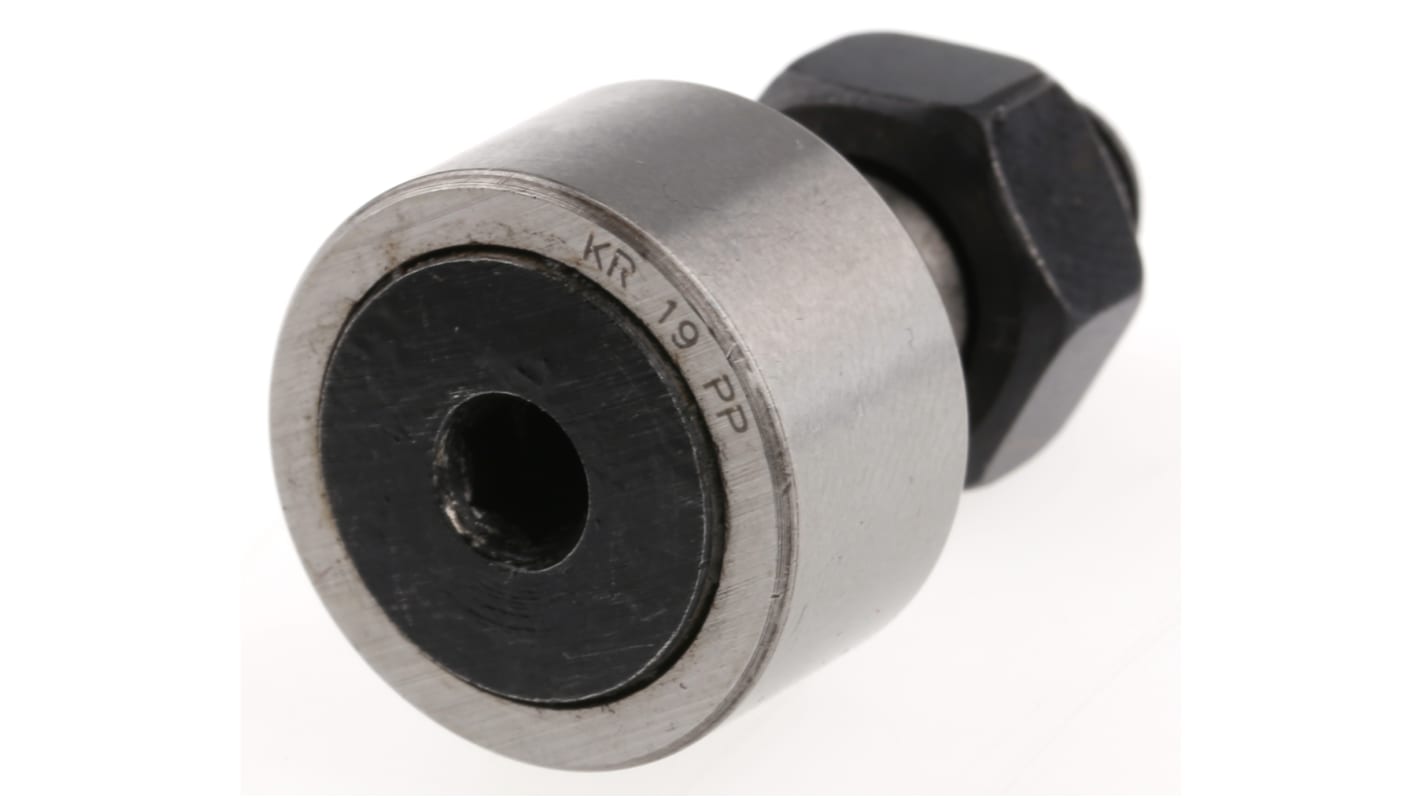

RS PRO Stud Cam Follower ID 8 mm, OD 19 mm
This stud type track follower from RS PRO is used to effectively reduce distortion and friction in industrial equipment. It includes a partially threaded shaft fixed to its inner diameter for assembly onto a machine frame with a nut or similar fastening device. It also has two O-ring seals to keep out dirt and grease.
This component has a broad temperature range of between -30°C and +100°C, so it's ideal for both high-heat and extremely cold environments. It also has a dynamic load rating of 4250 N (newtons), so you know it's capable of withstanding large weights without deformation, making it suitable for heavy-duty industrial functionalities. You'll find track rollers such as this one used as eccentric rollers, guide rollers and rocker valve rollers in a wide range of settings. These include the aerospace industry, industrial robotics and machine tools.
This component has a broad temperature range of between -30°C and +100°C, so it's ideal for both high-heat and extremely cold environments. It also has a dynamic load rating of 4250 N (newtons), so you know it's capable of withstanding large weights without deformation, making it suitable for heavy-duty industrial functionalities. You'll find track rollers such as this one used as eccentric rollers, guide rollers and rocker valve rollers in a wide range of settings. These include the aerospace industry, industrial robotics and machine tools.
Features and Benefits
• Bore size of 8 mm
• Dynamic load rating of 4250 N (Newtons)
• Eccentric ring slide & track system bearing type
• Roller diameter of 19 mm
• Roller length of 32 mm
• Static load rating of 4600 N
• Stud type
• Dynamic load rating of 4250 N (Newtons)
• Eccentric ring slide & track system bearing type
• Roller diameter of 19 mm
• Roller length of 32 mm
• Static load rating of 4600 N
• Stud type
Specifications
Attribute | Value |
|---|---|
| Roller Diameter | 19mm |
| Roller Length | 32mm |
| Type | Stud |
| Bore Size | 8mm |
| Static Load Rating | 4600N |
| Dynamic Load Rating | 4250N |
| Ring Slide & Track System Bearing Type | Eccentric |
