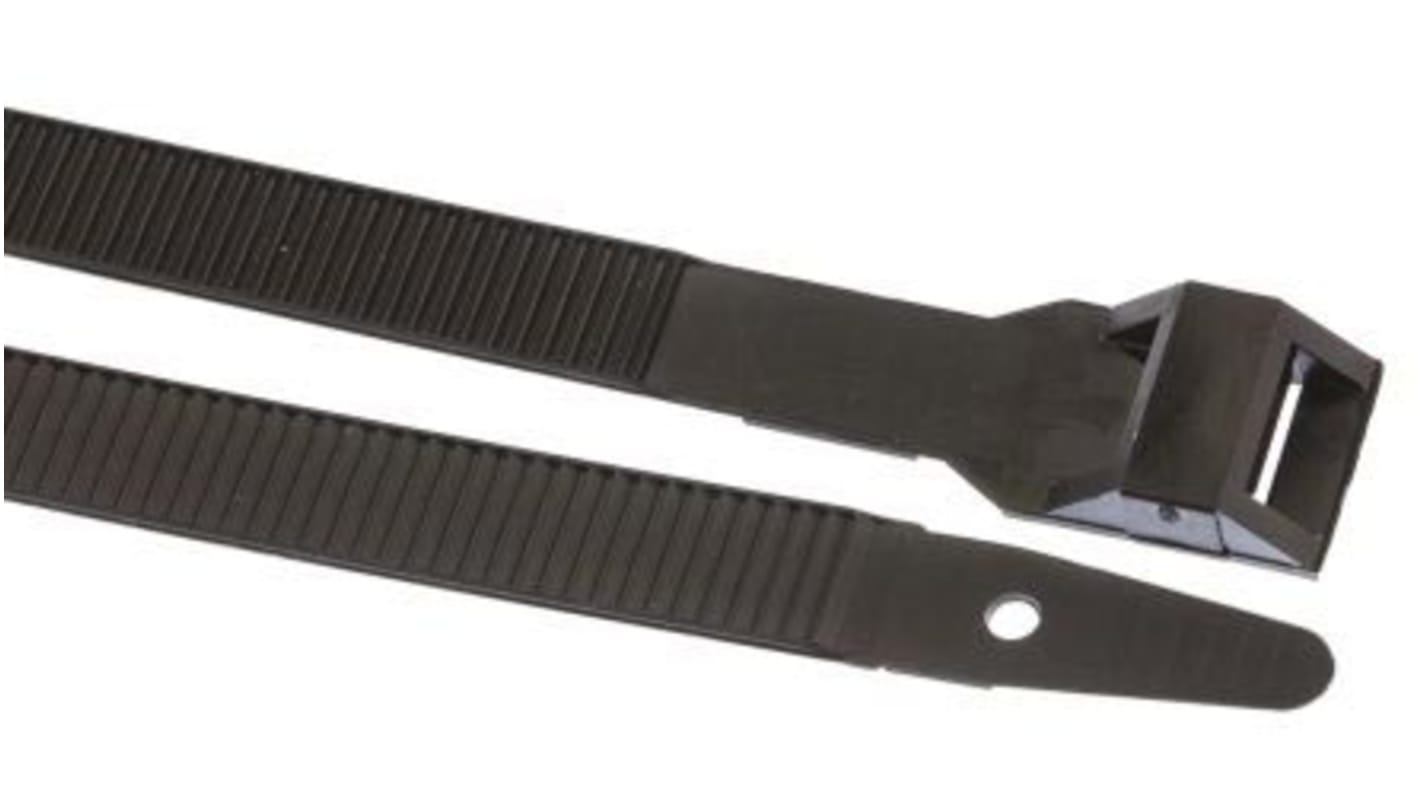

HellermannTyton Black Nylon Outside Serrated Cable Tie, 752mm x 9 mm, LPH Series

  • RS Stock No. 134-5426
  • Mfr. Part No. 112-00034 LPH750-PA66HIR(S)-BK
  • Manufacturer HellermannTyton
Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): GB
Product Details

LPH Series Low Profile Cable Ties

Non-releasable cable ties manufactured from black nylon, with high tensile strength. Outside serration ensures no damage to insulation of cable. LPH Series low profile head cable ties offer benefits including high tensile strength with low pressure on wire.

Features and Benefits

9 mm wide strap with outside serration
Low profile head with one or two bridges
High tensile strength
Insulation damage protection
Broad contact area
Possible use in restricted area
Suitable cable tie gun see RS Stock No. 608-531 .

Specifications
Attribute Value
Length 752 mm
Width 9 mm
Colour Black
Material Nylon 66
Type Outside Serrated
Quantity 100
Series LPH
Tensile Strength 540 (Minimum)N
Maximum Bundle Diameter 220mm
23 In stock for delivery within 5 working day(s) (Global Stock)
Price (ex. GST) 1 Box of 100
$ 201.88
(exc. GST)
$ 222.07
(inc. GST)
Box(es)
Per Box
Per unit*
1 - 14
$201.88
$2.019
15 - 49
$194.83
$1.948
50 +
$191.96
$1.92
*price indicative
