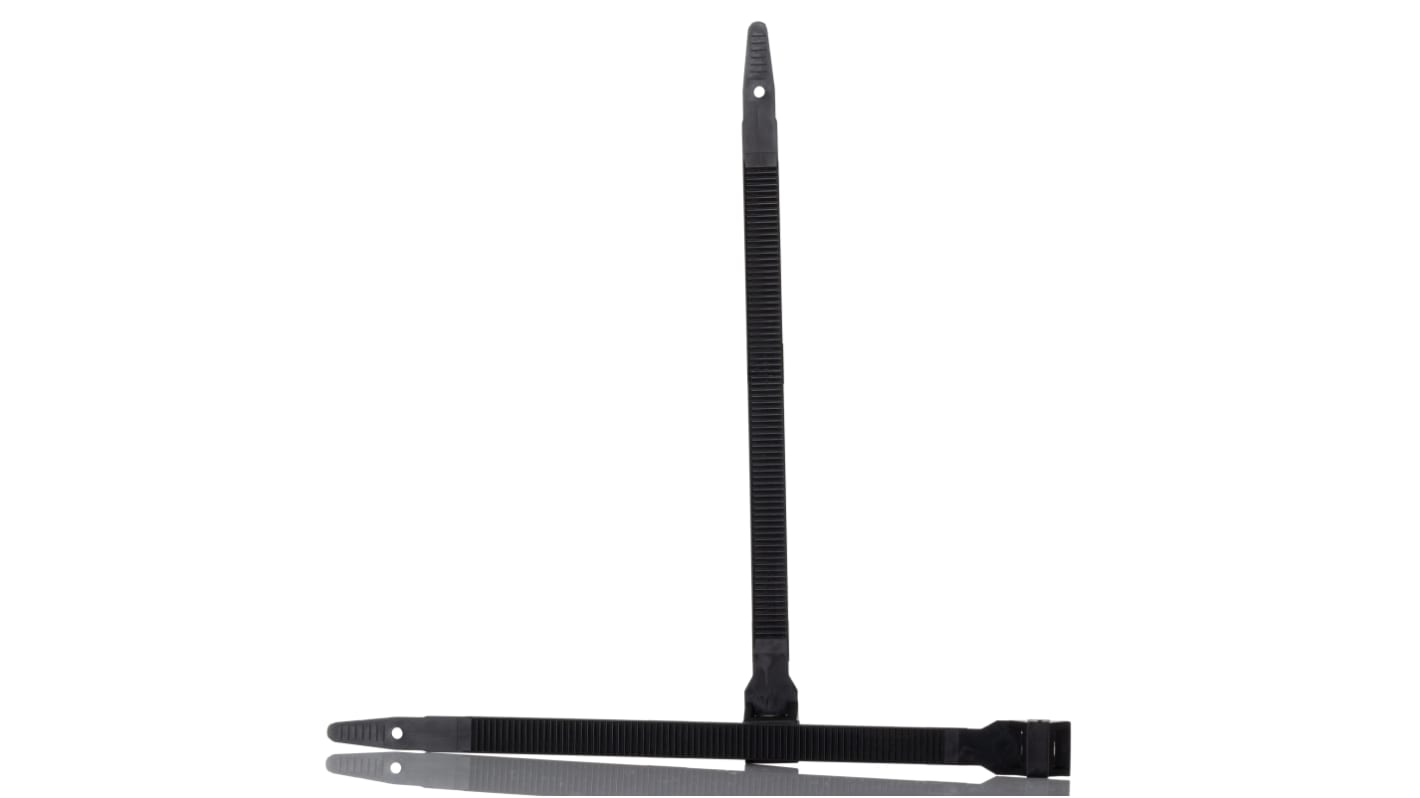

HellermannTyton Black Nylon Cable Tie, 175mm x 9 mm, LPH175 Series

  • RS Stock No. 608-575
  • Mfr. Part No. 112-00201 LPH175-PA66-BK (100)
  • Manufacturer HellermannTyton
Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): GB
Product Details

LPH Series Low Profile Cable Ties

Non-releasable cable ties manufactured from black nylon, with high tensile strength. Outside serration ensures no damage to insulation of cable. LPH Series low profile head cable ties offer benefits including high tensile strength with low pressure on wire.

Features and Benefits

9 mm wide strap with outside serration
Low profile head with one or two bridges
High tensile strength
Insulation damage protection
Broad contact area
Possible use in restricted area
Suitable cable tie gun see RS Stock No. 608-531 .

Specifications
Attribute Value
Length 175 mm
Width 9 mm
Colour Black
Material Nylon 66
Type Non-Releasable
Quantity 100
UV Resistant Yes
Minimum Operating Temperature -40°C
Maximum Operating Temperature +85°C
Series LPH175
Tensile Strength 310N
Maximum Bundle Diameter 40mm
159 In stock for delivery within 5 working day(s) (Global Stock)
Price (ex. GST) 1 Bag of 100
$ 26.14
(exc. GST)
$ 28.75
(inc. GST)
Bag(s)
Per Bag
Per unit*
1 - 14
$26.14
$0.261
15 - 49
$25.48
$0.255
50 +
$24.83
$0.248
*price indicative
