Kopex-EX C2 Series Metallic Stainless Steel Cable Gland Kit, M20 Thread, 3mm Min, 12mm Max, IP66, IP68
- RS Stock No.:
- 813-4101
- Mfr. Part No.:
- EXS04MMC2K-RS
- Brand:
- Kopex-EX
Stocked by manufacturer – available for delivery 20/05/2024
Added
Price (ex. GST) 1 Kit
$110.63
(exc. GST)
$121.69
(inc. GST)
Kit(s) | Per Kit |
1 + | $110.63 |
- RS Stock No.:
- 813-4101
- Mfr. Part No.:
- EXS04MMC2K-RS
- Brand:
- Kopex-EX
Technical data sheets
Legislation and Compliance
Product Details
C2 Ex e Series Single Compression Metric Cable Gland Kits
These cable gland kits are suitable for use with unarmoured cable.
Features and Benefits
For use with unarmoured cable
Flameproof Ex e and Ex d
Available in various materials
Wide cable range within one product with removeable seals

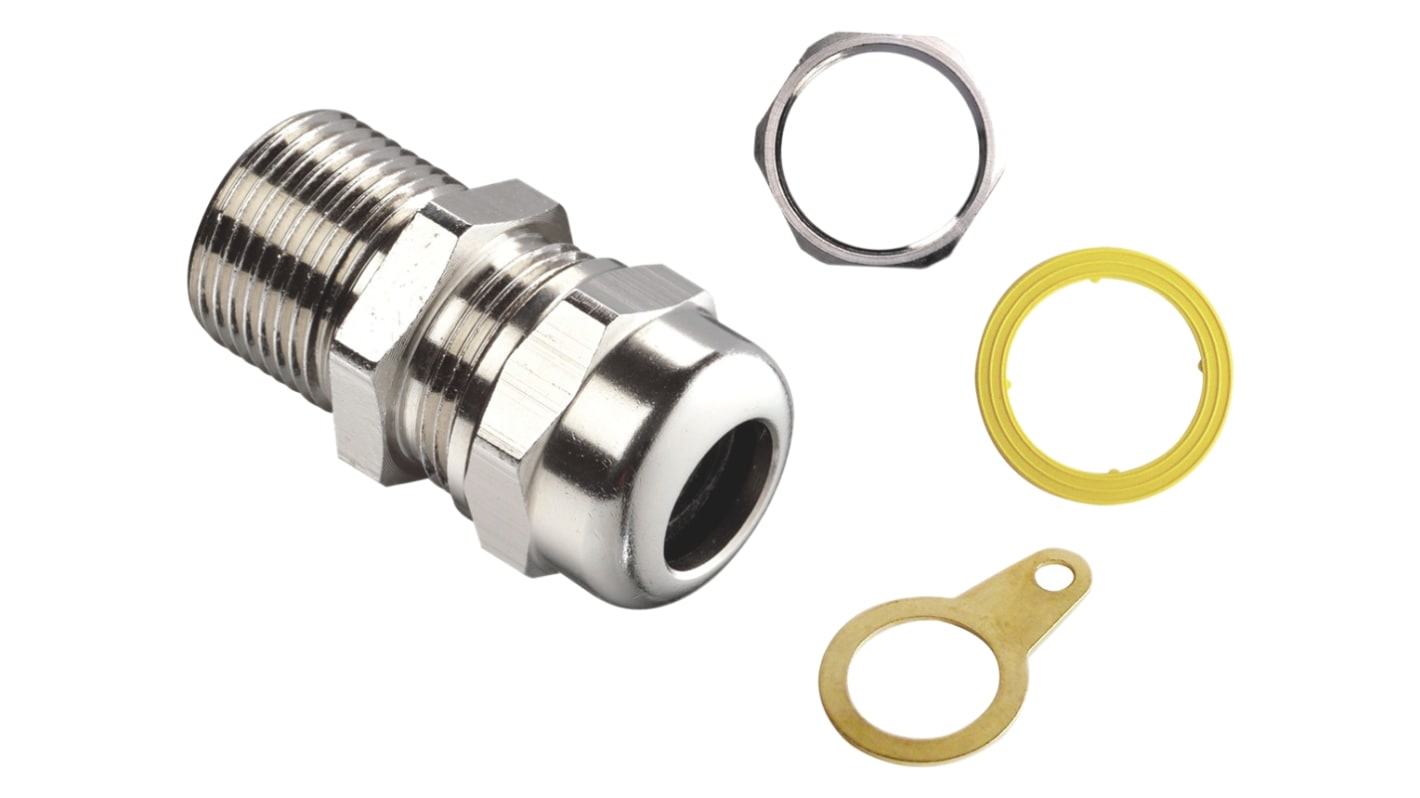

Kit Contents:
Gland
Locknut
Washer
Earth Tag
Standards
EC Type examination certificate: IMQ 13 ATEX 015X, II 2GD / Exe IIC Gb, Ex tb IIIC Db
Approvals
EN/IEC 60079-0, EN60079-1, EN60079-7, EN60079-11, EN 60079-31
Specifications
Attribute | Value |
---|---|
Thread Size | M20 |
Maximum Cable Diameter | 12mm |
Minimum Cable Diameter | 3mm |
Material | Stainless Steel |
Colour | Metallic |
Series | C2 |
IP Rating | IP66, IP68 |
Locknut Included | Yes |
Hazardous Area Certification | ATEX |
Minimum Operating Temperature | -40°C |
Maximum Operating Temperature | +100°C |
Number of Pieces | 1 |
Number of Cores | 1 |
Operating Temperature Range | -40 → +100 °C |
Kit Includes | Cable Gland, Locknuts, Shrouds, Earth Tags, Washers |
