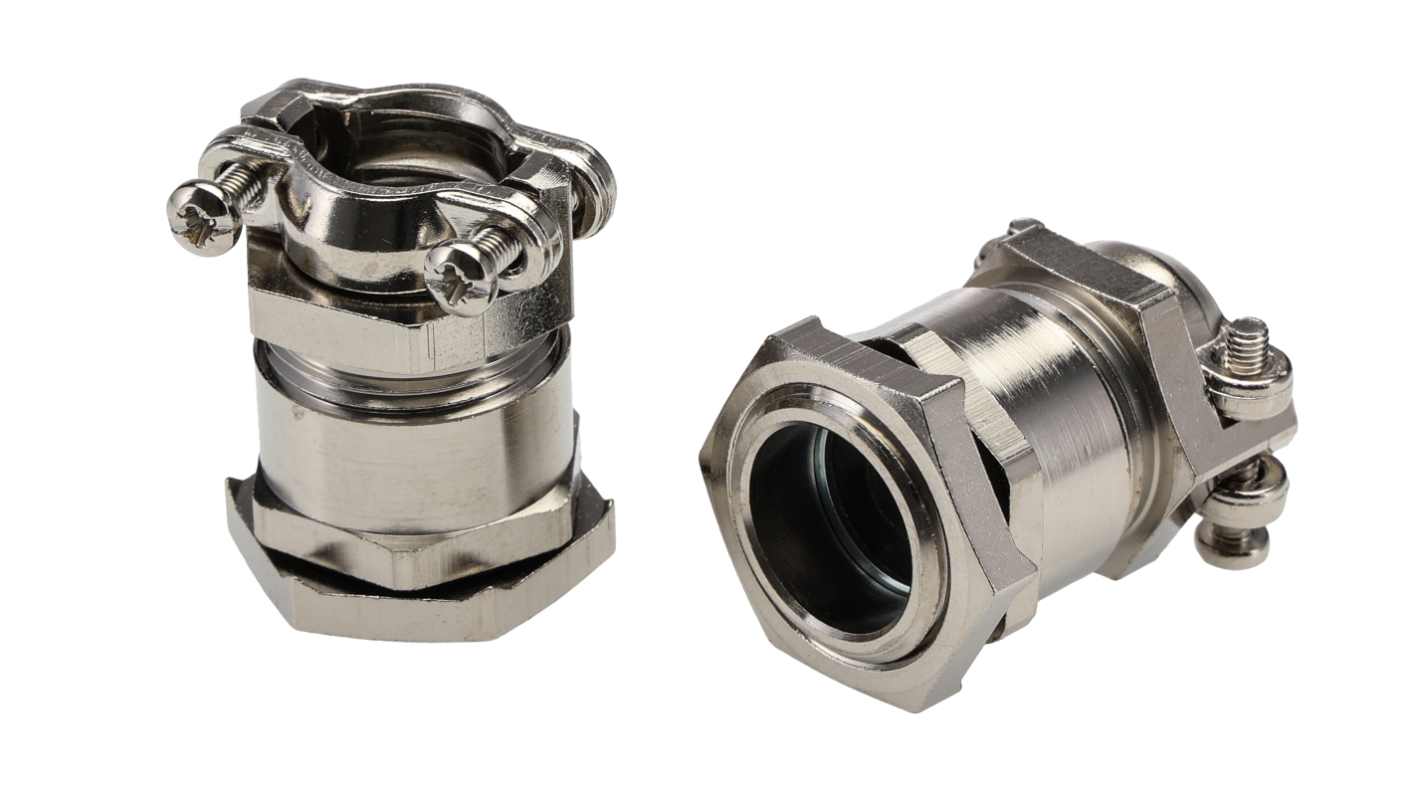

Lapp SKINDICHT Series Metallic Nickel Plated Brass Cable Gland, M20 Thread, 11mm Min, 13mm Max, IP55
- RS Stock No.:
- 433-0866
- Mfr. Part No.:
- 52103320+52106820
- Brand:
- Lapp
On back order for despatch 02/07/2024, delivery within 10 working days from despatch date.
Added
Price (ex. GST) Each (In a Pack of 5)
$27.598
(exc. GST)
$30.358
(inc. GST)
| Units | Per unit | Per Pack* |
| 5 - 20 | $27.598 | $137.99 |
| 25 - 45 | $27.114 | $135.57 |
| 50 + | $26.412 | $132.06 |
| *price indicative | ||
- RS Stock No.:
- 433-0866
- Mfr. Part No.:
- 52103320+52106820
- Brand:
- Lapp
Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- DE
Product Details
Lapp IP55 PG/Metric Strain Relief Gland
The Lapp IP55 Skindicht SKZ cable glands are equipped with two solid brass saddle clamps that guarantee reliable strain relief.
The nickel plated brass, double saddle clamp arrangement accommodates a wide range of cables, which are clamped concentrically.
Features and Benefits
Resistant to corrosion and the effects of sea water
High mechanical stability and strain relief
Wide clamping range
Operating temperature from -20° to +80°C
Typical Applications
These glands are suitable for applications on connectors, switches and consoles in harsh application conditions.
Supplied with
Lock nut
Specifications
Attribute | Value |
|---|---|
| Thread Size | M20 |
| Maximum Cable Diameter | 13mm |
| Minimum Cable Diameter | 11mm |
| Material | Nickel Plated Brass |
| Colour | Metallic |
| Series | SKINDICHT |
| IP Rating | IP55 |
| Locknut Included | Yes |
| Minimum Operating Temperature | -30°C |
| Maximum Operating Temperature | +80°C |
| Reference | SKINDICHT |
