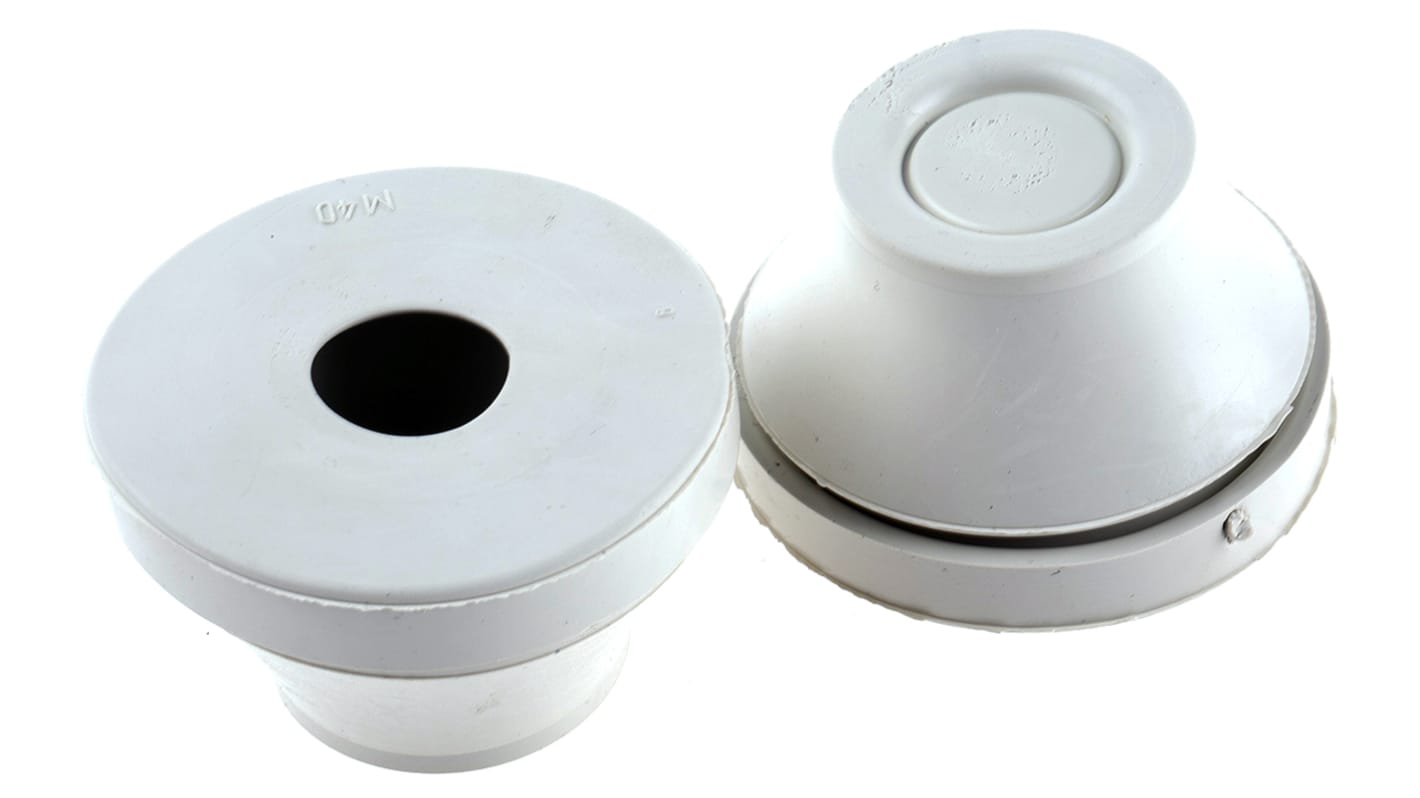

RS PRO Grey EPDM Cable Gland, M40 Thread, 20mm Min, 26mm Max, IP67

RS Stock No.:: 279-7071
Brand:: RS PRO

RS PRO Grey EPDM Cable Gland, M40 Thread, 20mm Min, 26mm Max, IP67

20 In AU stock for next working day delivery

150 In Global stock for delivery within 10 working day(s)

Added

Price (ex. GST) Each (In a Bag of 10)

$25.49

(exc. GST)

$28.04

(inc. GST)

Units	Per unit	Per Bag*
10 - 40	$25.49	$254.90
50 - 240	$24.777	$247.77
250 +	$20.391	$203.91
*price indicative

RS Stock No.:: 279-7071
Brand:: RS PRO

Technical data sheets

Legislation and Compliance

RoHS Status: Not Applicable

COO (Country of Origin):: FI

Product Details

RS Pro IP67 EPDM Cable Glands/Grommets

The grey RS Pro halogen free rubber membrane cable grommets are an excellent choice where space is limited.

Features and Benefits

Provides protection up to IP67

Quick and low-cost method of feeding cables through panels

Tapered top provides a degree of retention and sealing

Thread size of M16 to M50

Operating temperature of -40°C to +110°C

Cable diameter range of 5 to 35 mm

Note

This product is not suitable as a direct replacement for traditional cable glands when positive and secure retention are needed.

Specifications

Attribute	Value
Thread Size	M40
Maximum Cable Diameter	26mm
Minimum Cable Diameter	20mm
Material	EPDM
Colour	Grey
IP Rating	IP67
Minimum Operating Temperature	-40°C
Maximum Operating Temperature	+110°C
