Alpha Wire Blanking Plug, M16, Plastic, 20mm Diameter, Threaded

RS Stock No.:: 175-3740
Mfr. Part No.:: HPM16 BK080
Brand:: Alpha Wire

Alpha Wire Blanking Plug, M16, Plastic, 20mm Diameter, Threaded

120 In AU stock for next working day delivery

4350 In Global stock for delivery within 10 working day(s)

Added

Price (ex. GST) Each (In a Bag of 10)

$1.257

(exc. GST)

$1.383

(inc. GST)

Units	Per unit	Per Bag*
10 +	$1.257	$12.57
*price indicative

RS Stock No.:: 175-3740
Mfr. Part No.:: HPM16 BK080
Brand:: Alpha Wire

Technical data sheets

Datasheet

Legislation and Compliance

Product Details

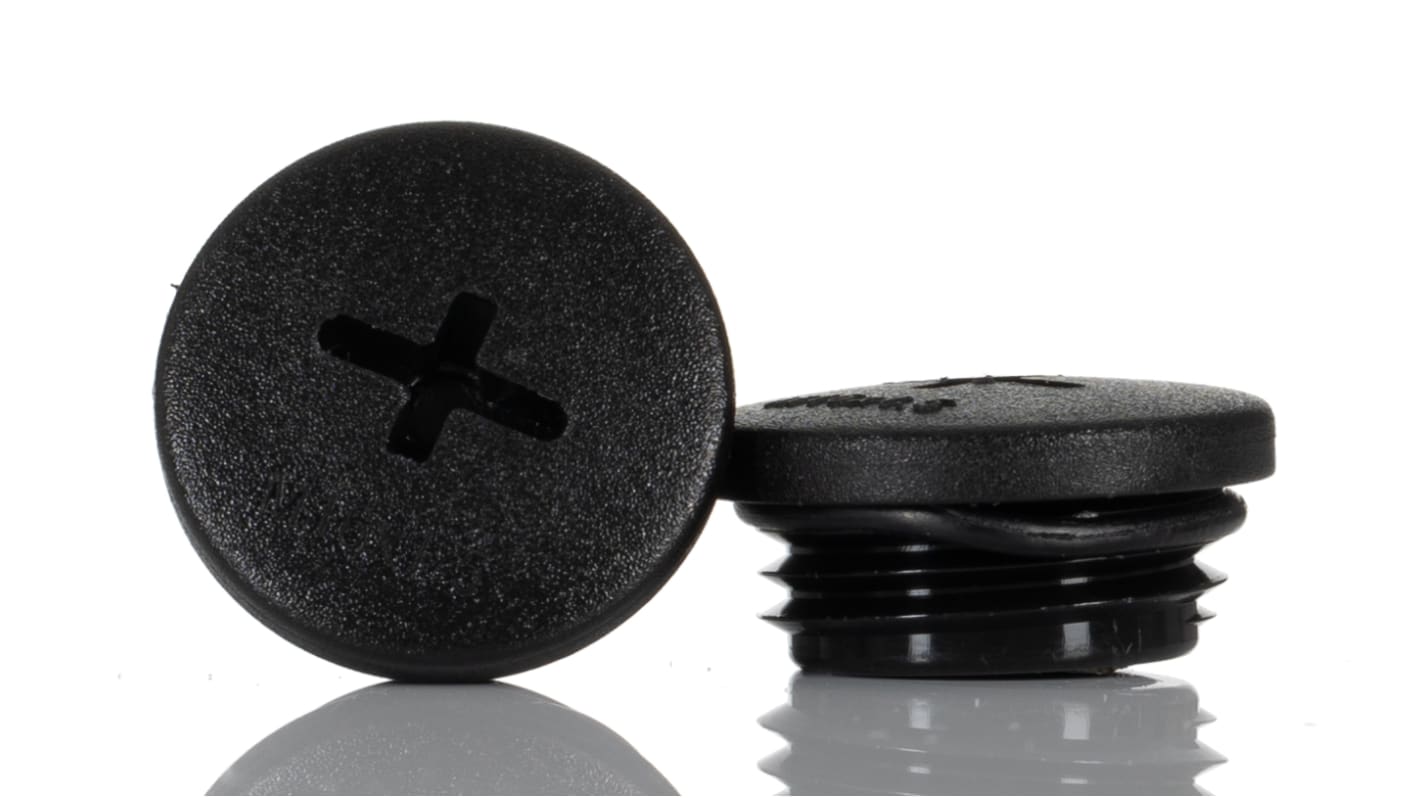

Belden Alpha Wire Blanking Plug, 20mm Diameter, Thermoplastic Material - FIT Series - HPM16 BK080

Add an extra layer of protection to your cable installation with this blanking plug from Belden Alpha Wire. It seals off unused openings in a cable gland to prevent dust, dirt and moisture from getting in, ensuring the gland maintains its IP protection rating. This also reduces the risk of electrical hazards. Threaded for easy insertion with an M16 x 1.5 thread size, the end cap fits neatly into your existing setup. A robust nylon body gives the plug high mechanical strength and resistance to heat, corrosion and chemicals.

Features & Benefits

• IP68 rating indicates protection against dust and water
• Rubber seal keeps contaminants and moisture out
• Flame-retardant, for fire safety in the workplace

Applications

• Process controls
• Data cables
• Telecommunications

Can this blanking plug withstand extreme temperatures?

Yes, this hardy plug can be permanently installed at operating temperatures between -20°C and +100°C. With intermittent use, this range is extended to -30°C and +150°C.

Specifications

Attribute	Value
Thread Size	M16
Material	Plastic
Plug Type	Blanking
Diameter	20mm
Threaded/Unthreaded	Threaded
Colour	Black
IP Rating	IP66, IP68
Minimum Operating Temperature	-20°C
Series	FIT
Fire Behaviour	Self-extinguishing
Standards Met	UL
Maximum Operating Temperature	+150°C
