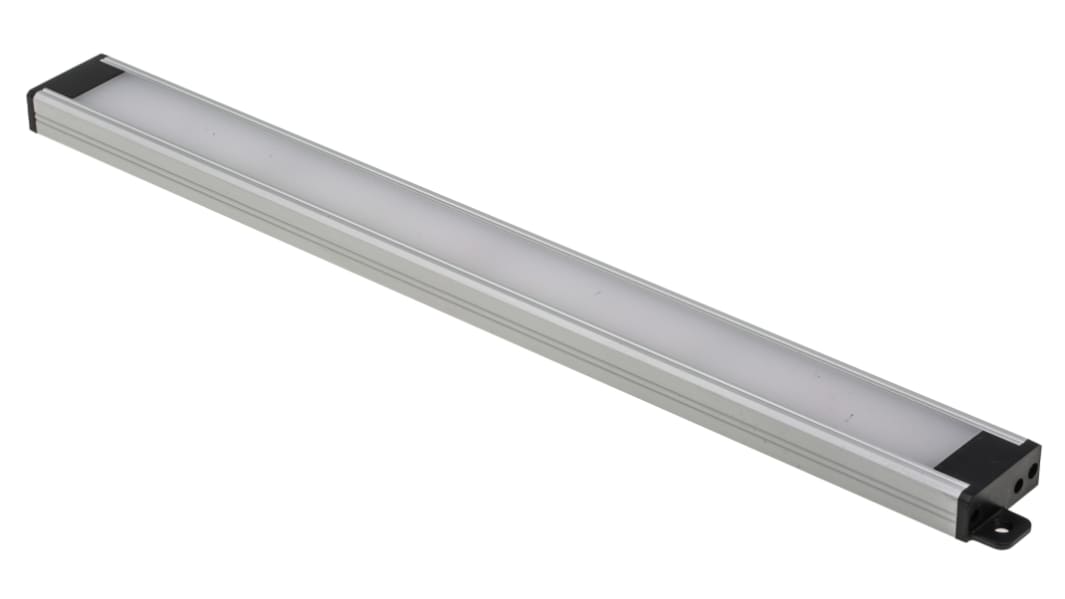

PowerLED 5 W LED Cabinet Light, 24 V dc, 6000 → 6500K

  • RS Stock No. 786-8967
  • Mfr. Part No. CON310
  • Manufacturer PowerLED
Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): CN
Product Details

LED Light Bars and Accessories CONNECT Series

The CONNECT series of slim line LED bars from PowerLED, are suitable for a wide range of lighting applications including: cabinet lighting, up lighting, accent lighting, etc. These LED light bars can be easily linked up in multiple configurations, using the PowerLED connectors, allowing up to 4 meters of lighting from 1 driver.

Slim line bar suitable for cabinet lighting, up lighting, accent lighting etc.
Easy installation, multiple configurations
Simple and safe low voltage on/off control
Reverse polarity protected
Simple link up capability, allowing up to 4 metres of lighting from 1 driver
Rugged Aluminium extrusion with easy fit mounting points
Suitable for 24VDC applications
Suitable for 24 VDC vehicle applications
Constant power technology, ensures balanced light output across each fitting

Note

Maximum single run 4 metres when using standard PS1 input cable and F180 connections.
PowerLED drivers and Connect connections must be used to provide power for the Connect series of LED light bars.

Specifications
Attribute Value
Lamp Type LED
Type Cabinet Light
Voltage Rating 24 V dc
Length 323.6 mm
Width 30 mm
Depth 12.3 mm
Dimensions 323.6 x 30 x 12.3 mm
Wattage 5 W
Colour Temperature 6000 → 6500K
Lamp Supplied Yes
Finish White
EU Energy Efficiency Rating A+
121 In stock for delivery within 5 working day(s) (Global Stock)
Price (ex. GST) Each
$ 49.12
(exc. GST)
$ 54.03
(inc. GST)
units
Per unit
1 - 1
$49.12
2 - 4
$48.00
5 +
$46.34
