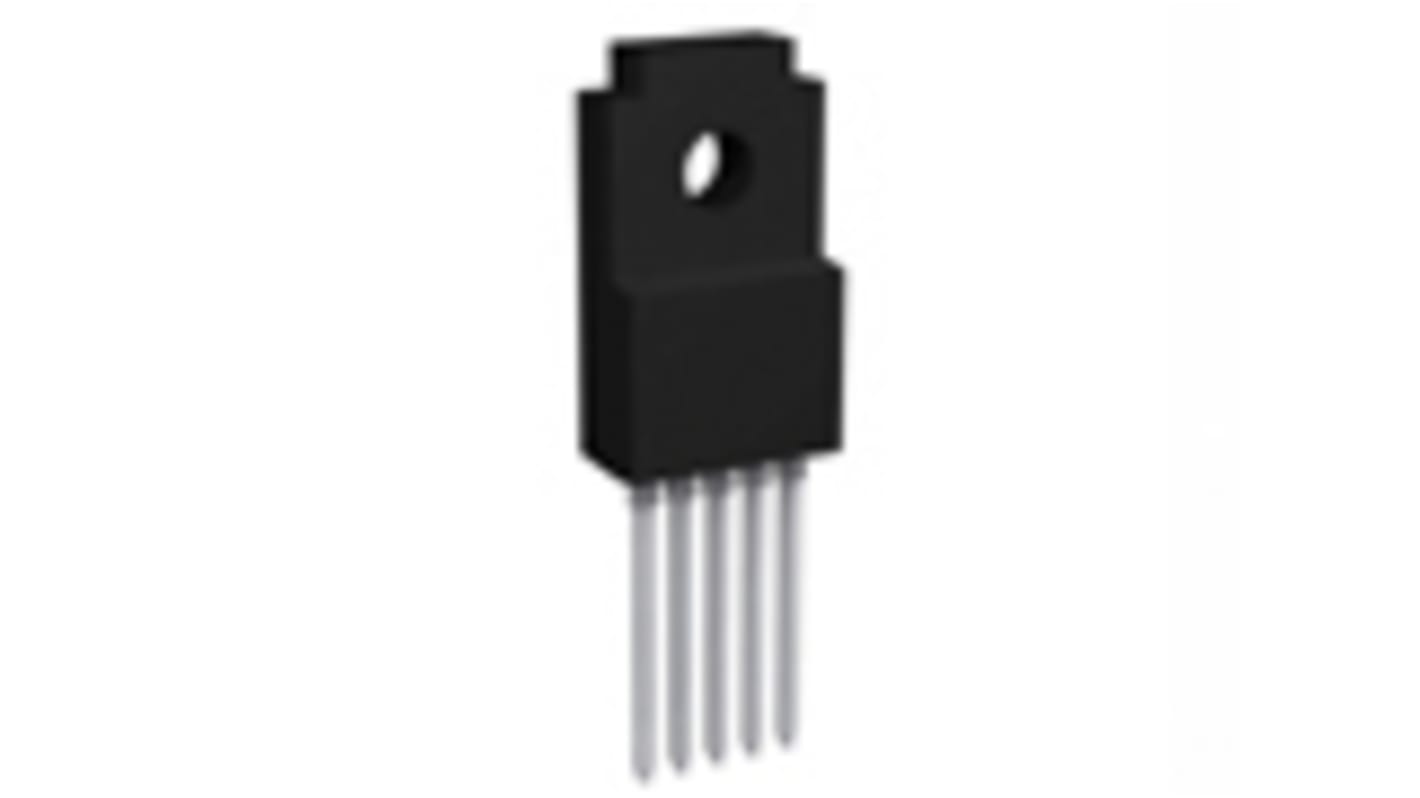

ROHM, BD9701T Step-Down Switching Regulator 1.5A Adjustable 5 + Tab-Pin, TO- 220FP

  • RS Stock No. 171-5639
  • Mfr. Part No. BD9701T
  • Manufacturer ROHM
Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
Product Details

BD9701T is a single-channel step-down switching regulator capable of PWM operation. It has a built-in P-Channel MOSFET making its efficiency high at small loads. It has lower power consumption because it is made under Bi-CMOS process. Its operating current is only 4mA (Typ.) and standby current is 0μA (Typ.).

Built-In P-Channel MOSFET for High Efficiency
Adjustable Output Voltage Via External Resistors
Built-In Over-Current Protection and Thermal
Shutdown Circuits
ON/OFF Control Via STBY Pin
Applications
TVs, Printers, DVD Players, Projectors, Gaming Devices, PCs, Car Audio/Navigation Systems, ETCs, Communication Equipment, AV Products, Office Equipment, Industrial Devices, and more.

Specifications
Attribute Value
Maximum Output Current 1.5A
Maximum Output Voltage 32 V
Regulator Function Buck Converter
Minimum Output Voltage 1 V
Minimum Input Voltage 8 V
Maximum Input Voltage 35 V
Output Type Adjustable
Mounting Type Through Hole
Number of Outputs 1
Pin Count 5 + Tab
Package Type TO- 220FP
Switching Regulator Yes
Line Regulation 100 mV
Load Regulation 40 mV
Maximum Operating Temperature +85 °C
Maximum Switching Frequency 120 kHz
Dimensions 10 x 4.5 x 17mm
Length 10mm
Width 4.5mm
Height 17mm
Minimum Operating Temperature -40 °C
Efficiency 86%
25 In stock for delivery within 5 working day(s) (Global Stock)
Price (ex. GST) Each (In a Pack of 5)
$ 3.338
(exc. GST)
$ 3.672
(inc. GST)
units
Per unit
Per Pack*
5 - 5
$3.338
$16.69
10 - 20
$3.004
$15.02
25 +
$2.732
$13.66
*price indicative
