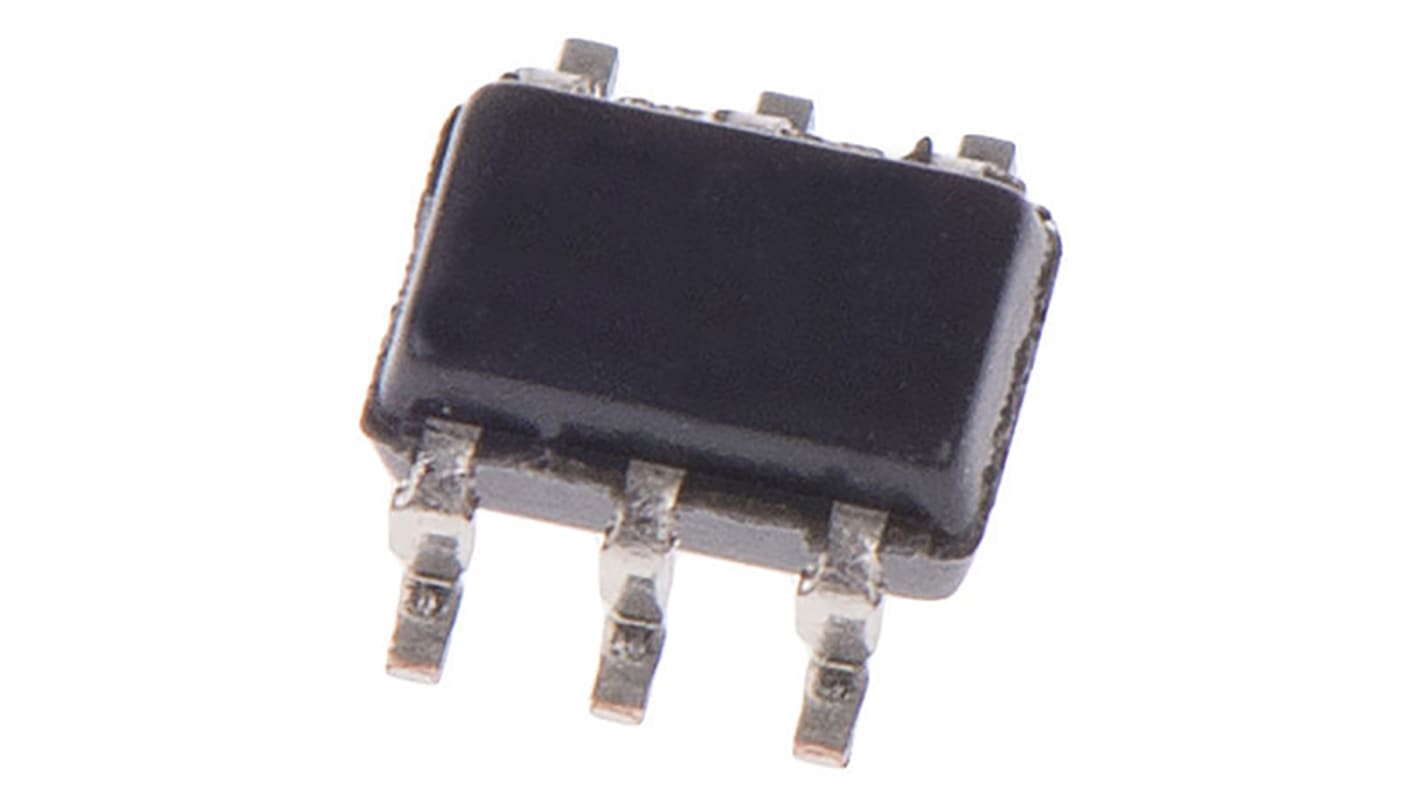

Texas Instruments TPS61222DCKT, Boost Converter, Step Up 400mA, 2000 kHz 6-Pin, SC-70

Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): PH
Product Details

Step-Up (Boost) DC/DC Converters (Integrated Switch), Texas Instruments

DC/DC Switching Regulator Converters (Integrated Switch), Texas Instruments

The range of highly integrated high-efficiency switching voltage regulators from Texas Instruments includes Step-up (Boost), Step-down (Buck), Step-up/down (Boost/Buck) and Inverting types providing efficient solutions for every DC Voltage Regulator application.

Specifications
Attribute Value
Regulator Function Step Up
Maximum Output Current 400mA
Number of Outputs 1
Line Regulation 0.5 %
Load Regulation 0.5 %
Mounting Type Surface Mount
Package Type SC-70
Pin Count 6
Output Type Fixed
Maximum Switching Frequency 2000 kHz
Switching Regulator Yes
Efficiency 95%
Dimensions 2.15 x 1.4 x 1mm
Height 1mm
Minimum Input Voltage 0.7 V
Minimum Operating Temperature -40 °C
Minimum Output Voltage 4.82 V
Width 1.4mm
Length 2.15mm
Maximum Operating Temperature +85 °C
Maximum Output Voltage 5.13 V
Maximum Input Voltage 5.5 V
500 In stock for delivery within 5 working day(s) (Global Stock)
Price (ex. GST) Each (On a Reel of 250)
$ 1.27
(exc. GST)
$ 1.40
(inc. GST)
units
Per unit
Per Reel*
250 +
$1.27
$317.50
*price indicative
