Gedore Bearing Puller 1.06/11-B

  • RS Stock No. 125-3888
  • Mfr. Part No. 1.06/11-B
  • Manufacturer Gedore
Technical data sheets
Legislation and Compliance
RoHS Status: Not Applicable
COO (Country of Origin): DE
Product Details

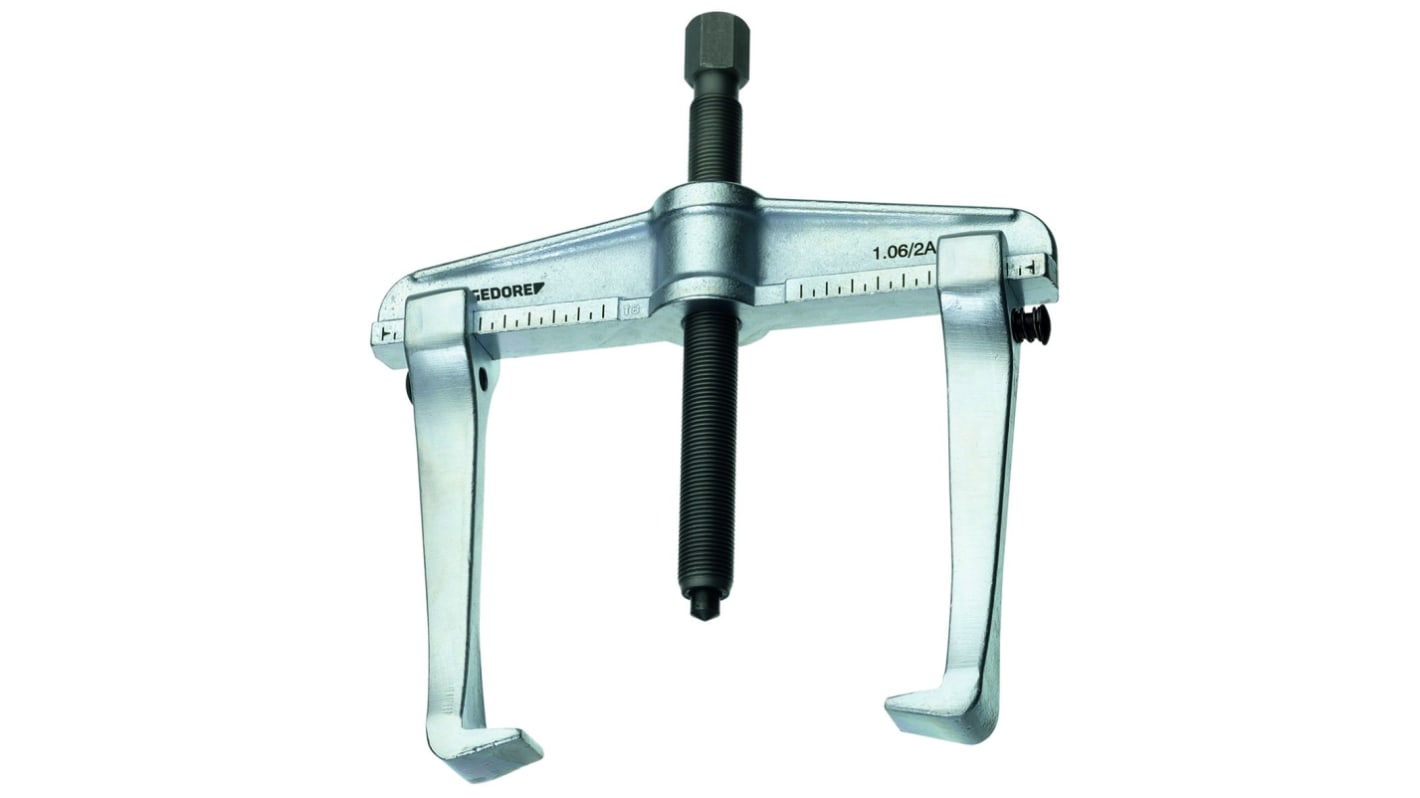

Gedore Universal Puller 2-Arm Pattern, Rigid Legs With Leg Brake

Gedore Universal puller 2-arm pattern, rigid legs with leg brake. The leg brake prevents unintentional leg slipping. The leg can be slid along the cross-beam at the push of a button. By reversing the legs, this tool can be used as an internal or external puller.

Features and Benefits

Strong drop forged design
Rigid legs forged from one piece
Leg brake prevents unintentional leg slipping. The leg can be slid along the cross-beam at the push of a button
Scale for uniform adjustment of the puller legs. Allows centred pulling, with optimised application of force, even when high pulling forces are required
By reversing the legs, this tool can be used as an internal or external puller
Legs available in different lengths for special situations

Specifications
Attribute Value
Capacity 100 (External) mm, 140 (Internal) mm
Puller Type Bearing Puller
Operation Lever Press
5 In stock for delivery within 5 working day(s) (Global Stock)
Price (ex. GST) Each
$ 170.74
(exc. GST)
$ 187.81
(inc. GST)
units
Per unit
1 +
$170.74
