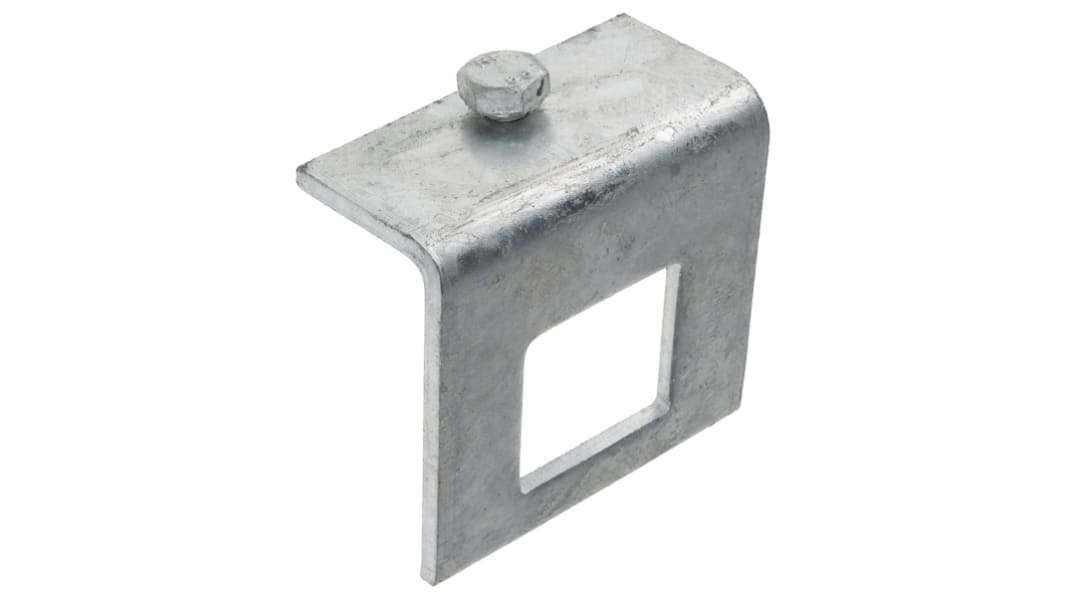

Unistrut Steel 0.36kg Window Bracket, Fits Channel Size 41 x 41mm Beam Clamp

  • RS Stock No. 767-422
  • Mfr. Part No. P 1796
  • Manufacturer Unistrut
Technical data sheets
Legislation and Compliance
RoHS Status: Not Applicable
COO (Country of Origin): GB
Product Details

Window beam clamp

Maximum load per clamp: 225kg

//media.rs-online.com/t_line/L767680-02.gif

Unistrut Beam Clamps

The Unistrut beam clamps made from steel. Fits channel size is 41 x 41mm.

Features and Benefits

• Design Load = 500lbs (2.22 kN) each
• Safety factor = 2.5 based on ultimate strength of connection
• Set screw installation torque: 125 in-lbs (14 N-m)
• Window Bracket 0.36kg

Specifications
Attribute Value
Clamp Type Window Bracket
Fits Channel Size 41 x 41mm
Material Steel
Weight Per Item 0.36kg
44 : Next working day (AU stock)
422 : 5 working days (Global stock)
Price (ex. GST) Each (In a Pack of 2)
$ 17.555
(exc. GST)
$ 19.311
(inc. GST)
units
Per unit
Per Pack*
2 +
$17.555
$35.11
*price indicative
