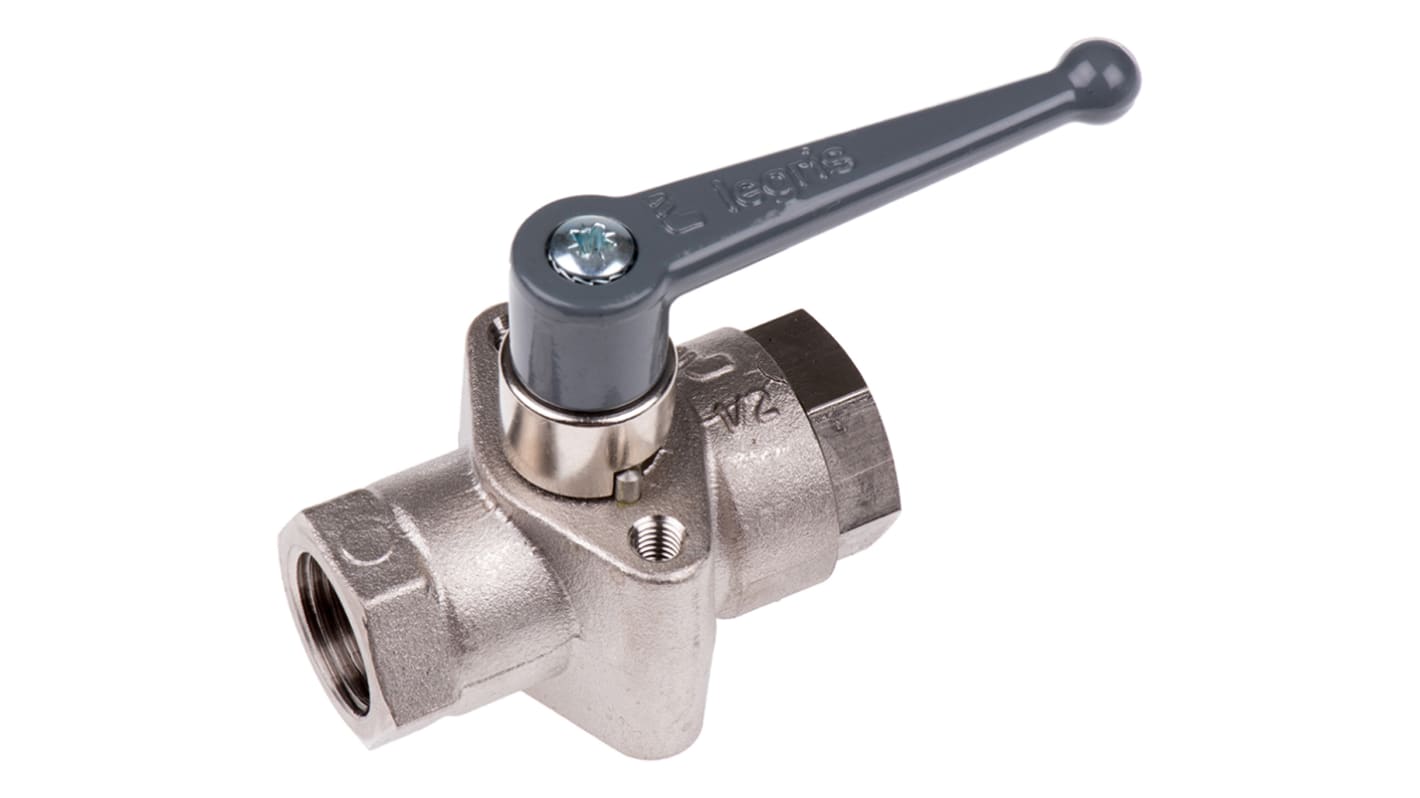

Legris Brass 2 Way, Ball Valve, BSPP 1/2in

RS Stock No.:: 231-5146
Mfr. Part No.:: 6402 13 21
Brand:: Legris

Legris Brass 2 Way, Ball Valve, BSPP 1/2in

Stock check temporarily unavailable - call for stock availability

Added

Price (ex. GST) Each

$136.32

(exc. GST)

$149.95

(inc. GST)

Units	Per unit
1 - 9	$136.32
10 +	$134.64

RS Stock No.:: 231-5146
Mfr. Part No.:: 6402 13 21
Brand:: Legris

Technical data sheets

Legislation and Compliance

RoHS Status: Not Applicable

COO (Country of Origin):: FR

Product Details

Panel Mountable

Mountable in-line ball valve for closing fluid systems with a simple quarter turn of the handle

full flow
Optimum sealing due to compensating "O" rings
Excellent resistance to scaling due to ball seal configuration

Ball Valve, Standard, Padlockable and Panel Mount

These nickel plated brass ball valves have seals designed to remove scale deposits with each operation. The polished brass ball is sealed on both sides by nylon ring seals that are supported by compensating nitrile ’O’ rings. This arrangement keeps the seal in contact with the ball, preventing leakage should seal wear occur. A single threaded insert forms part of the valve body, maintaining the required seal compression and allowing the valve to be disassembled easily for inspection.

Specifications

Attribute	Value
Type	2 Way
Ball Material	Brass
Attachment Type	Threaded
Thread Standard	BSPP
Thread Size	1/2in
Body Material	Brass
Safe for Use With	Water
Handle Type	Lever
Handle Material	Zinc Alloy
Maximum Working Pressure psi	580psi
Maximum Working Pressure bar	40bar
