ALWAYSE Ball Transfer Unit with 25.4mm diameter Steel ball

RS Stock No.:: 687-770
Mfr. Part No.:: 100613
Brand:: ALWAYSE

ALWAYSE Ball Transfer Unit with 25.4mm diameter Steel ball

7 In Global stock for delivery within 5 working day(s)

Added

Price (ex. GST) Each

$17.13

(exc. GST)

$18.84

(inc. GST)

Units	Per unit
1 - 5	$17.13
6 - 24	$16.96
25 +	$16.78

RS Stock No.:: 687-770
Mfr. Part No.:: 100613
Brand:: ALWAYSE

Technical data sheets

Datasheet

Legislation and Compliance

RoHS Status: Not Applicable

COO (Country of Origin):: GB

Product Details

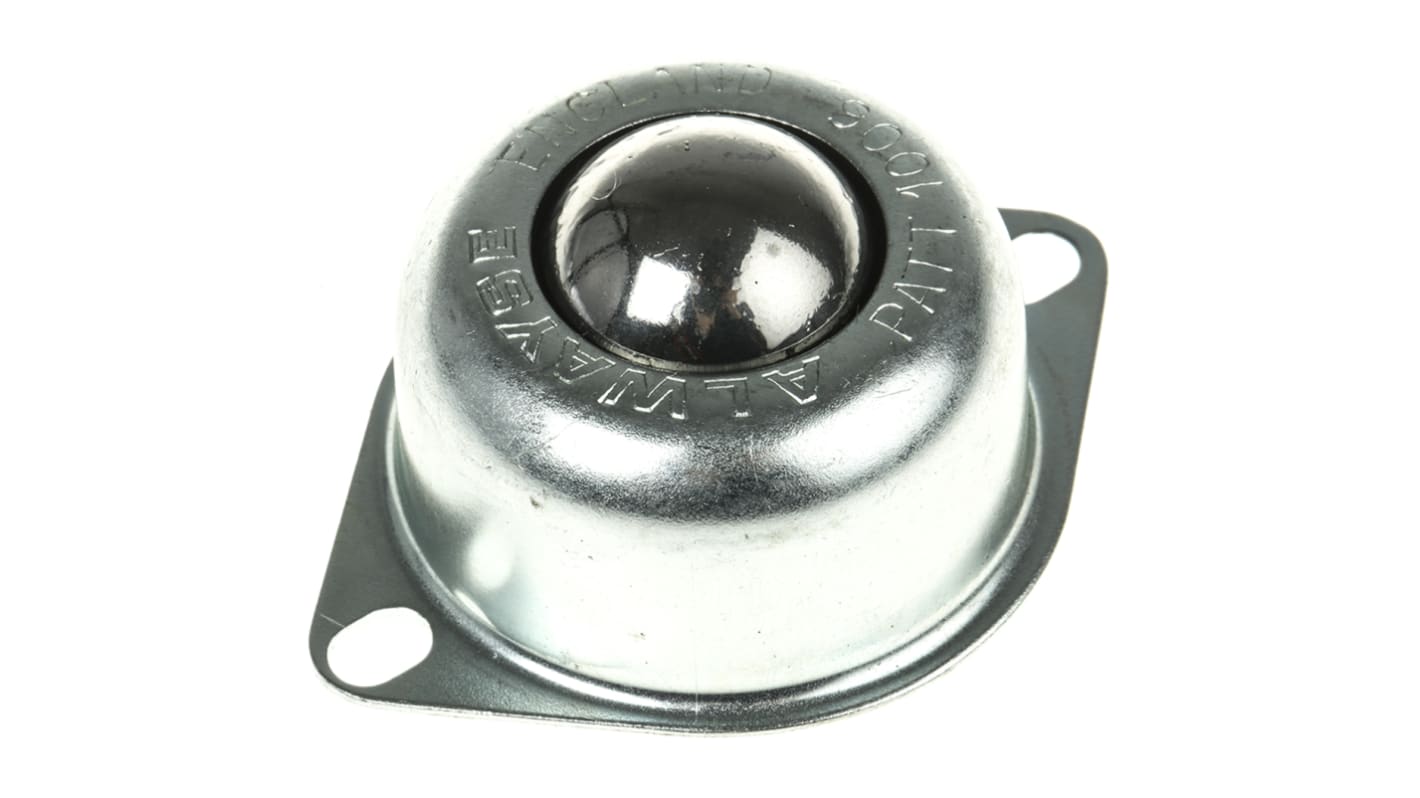

ALWAYSE Bolt Fixing Ball Transfer Unit

The ALWAYSE 2-hole flange mount bolt fixing ball transfer unit is a highly efficient device with a maximum load capacity is 55kg. This unit is used to move or transfer loads in all direction with a maximum speed of 1m/s. It is available in a wide choice of load capacities, sizes and fixings.
Note:
The body is made from normal plated mild steel material. The ball is made from - AISI 420 (Equivalent to 420 s29: BS970) magnetic.

Features and Benefits

Ball diameter is 25.4mm
Case material is normal plated mild steel
Flange length is 69mm and width is 51mm
High load capacity
High profile
Load ball material is steel with zinc plated
Self-cleaning hole
Operating temperature ranging between -30°C and 70°C

Certifications

ANSI/ESD S20.20:2014
BS EN 61340-5-1:2007

Specifications

Attribute	Value
Ball Diameter	25.4mm
Mounting Type	2-Hole Flange
Maximum Load	55kg
Load Ball Material	Steel
Case Material	Steel
Flange Length	69mm
Flange Width	51mm
