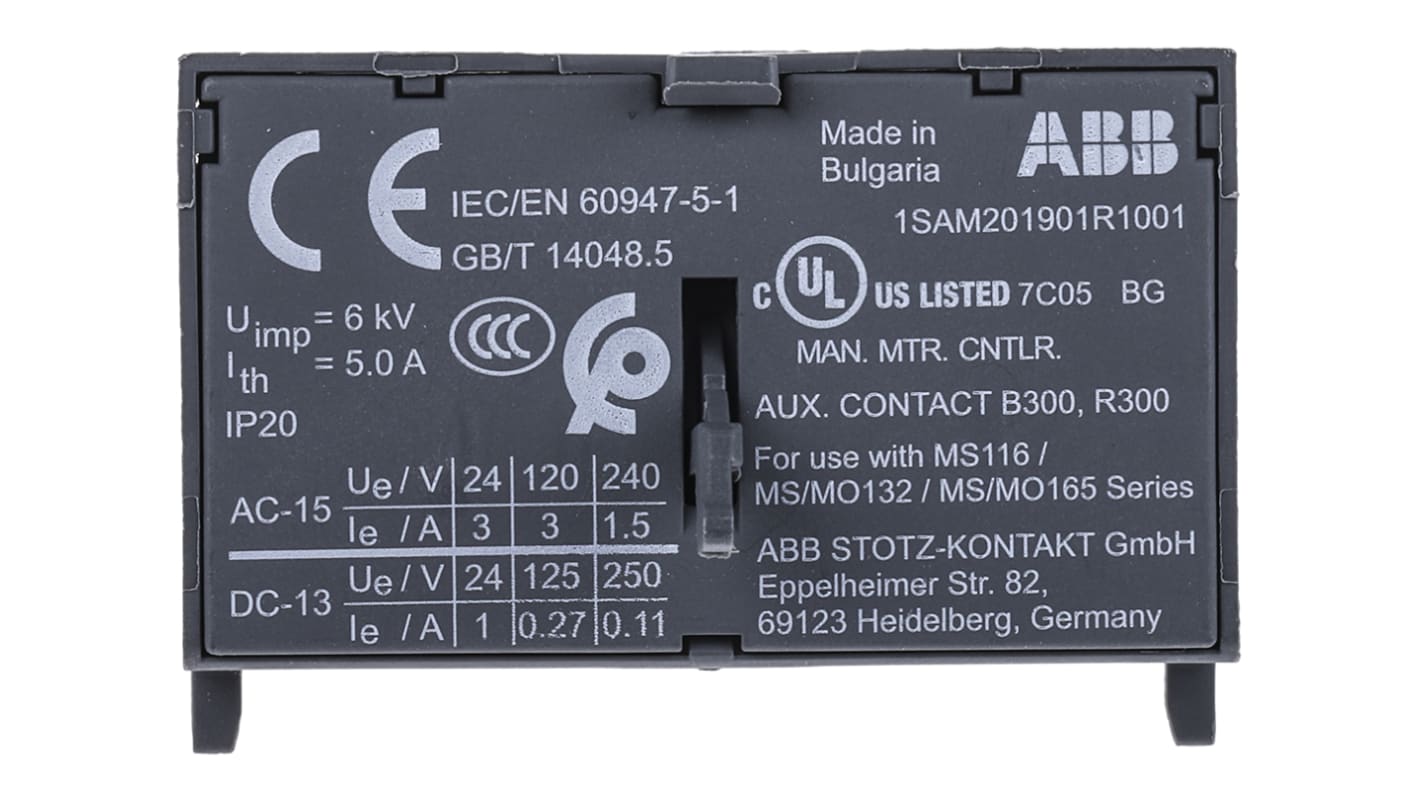

ABB Auxiliary Contact, 2 Contact, 1NC + 1NO, Front Mount
- RS Stock No.:
- 445-0415
- Mfr. Part No.:
- 1SAM201901R1001 HKF1-11
- Brand:
- ABB
34 In AU stock for next working day delivery
2 In Global stock for delivery within 5 working day(s)
Added
Price (ex. GST) Each
$28.20
(exc. GST)
$31.02
(inc. GST)
| Units | Per unit |
| 1 - 24 | $28.20 |
| 25 - 49 | $27.76 |
| 50 + | $27.24 |
- RS Stock No.:
- 445-0415
- Mfr. Part No.:
- 1SAM201901R1001 HKF1-11
- Brand:
- ABB
Technical data sheets
Legislation and Compliance
RoHS Status: Not Applicable
- COO (Country of Origin):
- BG
Product Details
ABB Auxiliary Contact For Manual Motor Starter, 250V AC/DC Voltage Rating - 1SAM201901R1001
Looking to connect your manual motor starter to your control device? Choose this auxiliary contact from ABB. It notifies your controller when your motor starter trips, keeping you informed about the status of your appliances. By immediately alerting you to faults when they emerge, it gives you efficient signalling. The unit works with both AC and DC voltages for compatibility with many standard power supplies. With a service life of 100,000 cycles, this is a long-lasting safety signalling option.
Features & Benefits
• Carries an IP20 rating to indicate protection against solid objects larger than 12mm for easy handling
• Impulse withstand voltage rating of 6kV for reliable signalling
• Compact dimensions of 45 (W) x 12.5 (H) x 26.5mm (D) take up minimal space in crowded cabinets
• Works at temperatures between -25°C and +60°C, so suitable for use in demanding conditions
• Impulse withstand voltage rating of 6kV for reliable signalling
• Compact dimensions of 45 (W) x 12.5 (H) x 26.5mm (D) take up minimal space in crowded cabinets
• Works at temperatures between -25°C and +60°C, so suitable for use in demanding conditions
Applications
• Workshops
• Automated assembly lines
• Metalworking
• Automotive industry
• Automated assembly lines
• Metalworking
• Automotive industry
How do I mount this auxiliary contact?
As you can screw this contact in the open slot below your motor starter's actuator with an M3 screwdriver, installation is quick and doesn't need special tools.
Specifications
Attribute | Value |
|---|---|
| Number of Contacts | 2 |
| Normal State Configuration | NO/NC |
| Mounting Style | Front Mount |
| Series | HK1 |
| Contact Current Rating | 1 A dc, 3 A ac |
| Terminal Type | Screw |
| Pole and Throw Configuration | DP |
| Contact Voltage Rating | 220 V dc, 230 V ac |
| Minimum Operating Temperature | -25°C |
| Maximum Operating Temperature | +60°C |
| Operating Temperature Range | -25 → +60 °C |
