Molex, CMC Automotive Connector Socket 48 Way, Crimp Termination
- RS Stock No.:
- 179-0011
- Mfr. Part No.:
- 64320-1318
- Brand:
- Molex
1100 In Global stock for delivery within 10 working day(s)
Added
Price (ex. GST) Each (In a Bag of 220)
$18.197
(exc. GST)
$20.017
(inc. GST)
| Units | Per unit | Per Bag* |
| 220 - 880 | $18.197 | $4,003.34 |
| 1100 + | $16.378 | $3,603.16 |
| *price indicative | ||
- RS Stock No.:
- 179-0011
- Mfr. Part No.:
- 64320-1318
- Brand:
- Molex
Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- CN
Product Details

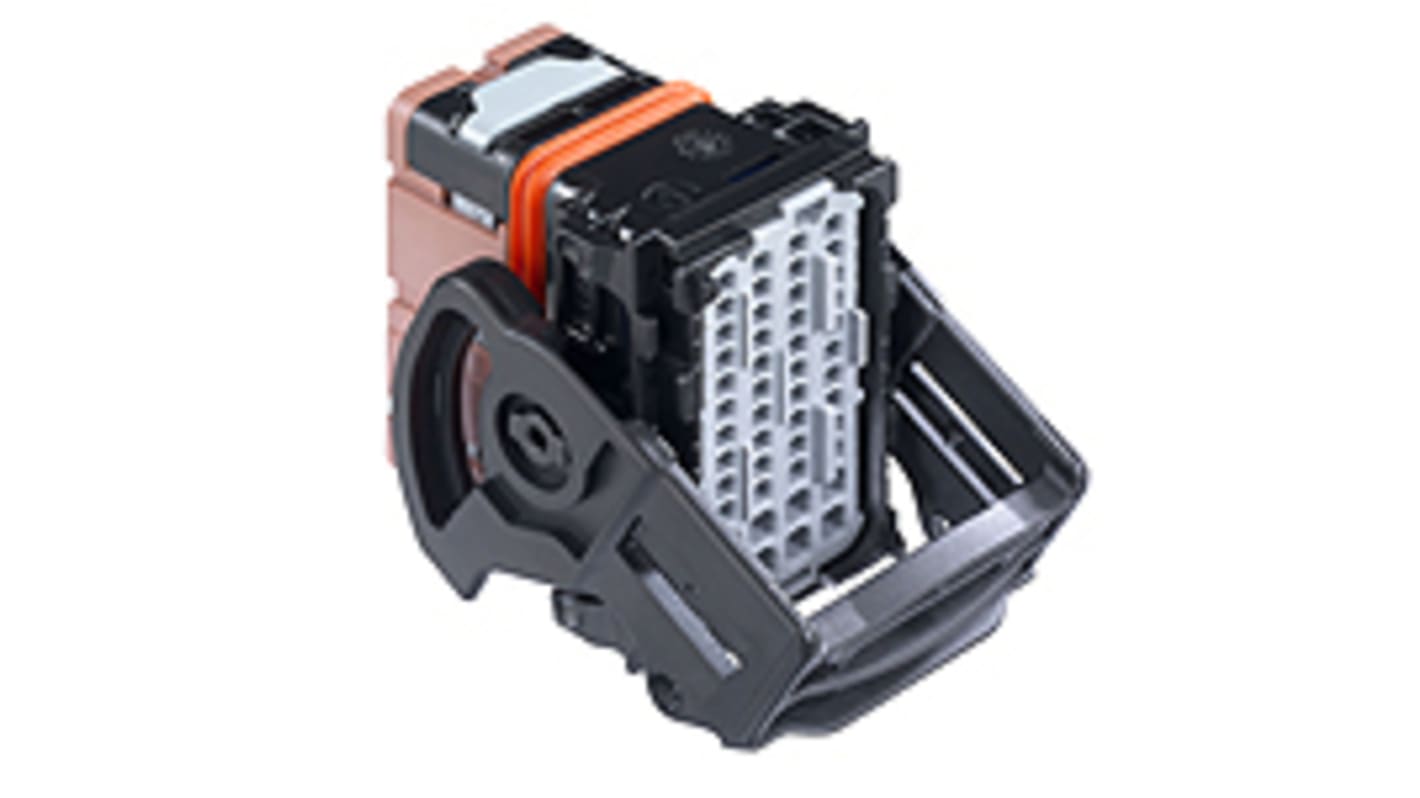

Molex Grey Automotive Connector Socket, 48 Contacts, 4 Rows - 64320 Series - 64320-1318
Use this sealed, high-density connecting system from Molex for powertrain and body electronics applications in cars, trucks and buses. It's a modular 48-contact connector that won't mate with an incompatible header, making wire-to-board installation straightforward. The unit comes with self-tapping screws that eliminate the need for drilling and speed up assembly. Thanks to a wide operating temperature range of -40°C to +125°C, it withstands environmental extremes, so is appropriate for motor controls and engine compartments.
• Rugged construction to withstand extreme vibration
• Compact dimensions of 40.5 (height) x 35.25 (width) x 53.2mm (depth) for use in tight spaces
• Crimp termination method ensures secure connections
• Compact dimensions of 40.5 (height) x 35.25 (width) x 53.2mm (depth) for use in tight spaces
• Crimp termination method ensures secure connections
Applications
• Engine control units
• Automatic gearboxes
• Construction equipment
• Lighting control systems
• Automatic gearboxes
• Construction equipment
• Lighting control systems
Is this connector waterproof?
This automotive socket has an IP67 rating, so it's dust-tight and waterproof.
For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.
Specifications
Attribute | Value |
|---|---|
| Type | CMC Receptacle |
| Number of Contacts | 48 |
| Gender | Female |
| Number of Rows | 4 |
| Current Rating | 12A |
| Series | CMC |
| Colour | Grey |
| IP Rating | IP6K7, IP6K8, IP6K9K |
| Termination Method | Crimp |
| Height | 40.5mm |
| Width | 35.25mm |
| Depth | 53.2mm |
| Housing Material | Polyester |
| Maximum Operating Temperature | +125°C |
| Series Number | 64320 |
| Minimum Operating Temperature | -40°C |
