RS PRO Cylindrical M12 Zinc Plated Steel Anti-Vibration Mount 350 Compression Load ,165mm dia. Natural Rubber +100°C

  • RS Stock No. 126-3892
  • Manufacturer RS PRO
Technical data sheets
Legislation and Compliance
RoHS Status: Exempt
COO (Country of Origin): IN
Product Details

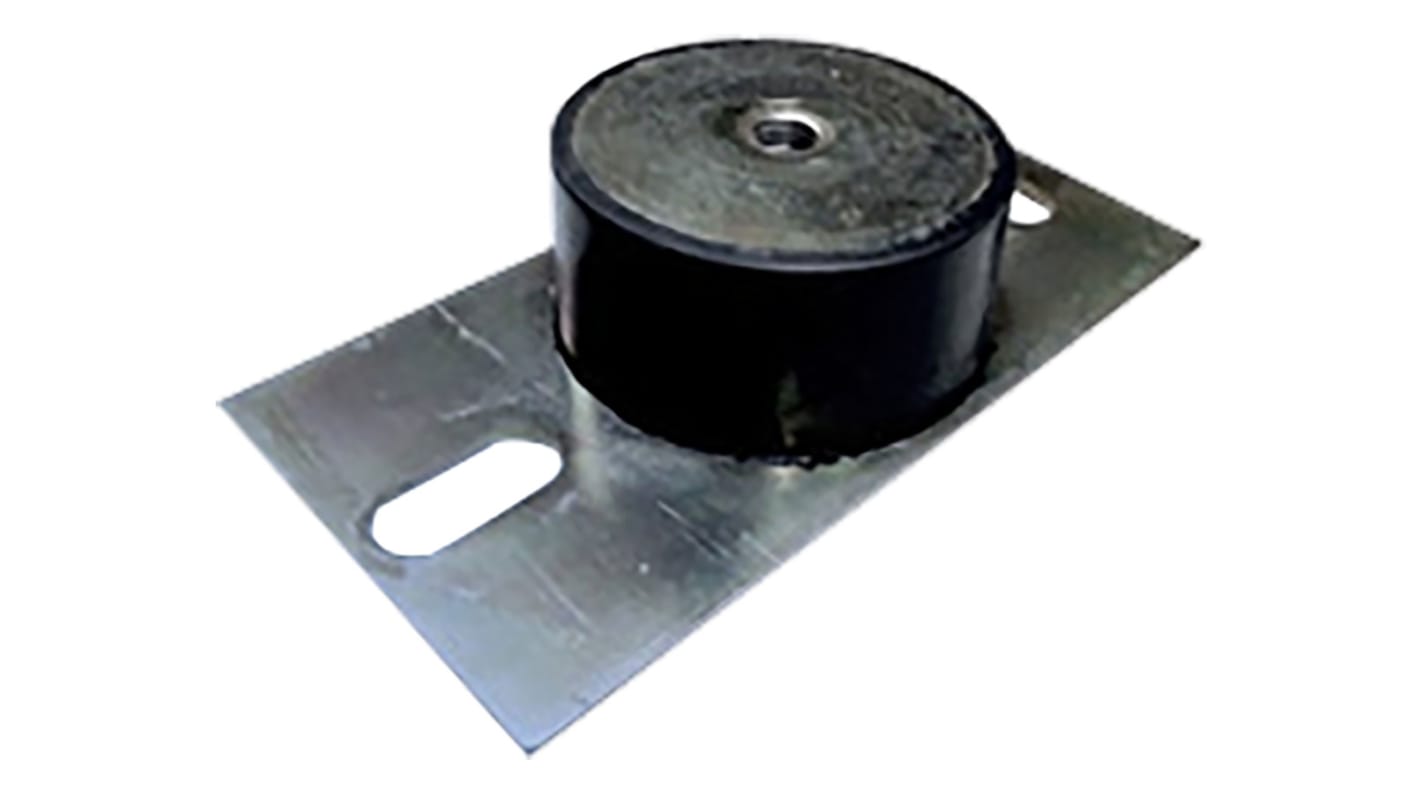

RS Pro Anti-Vibration Pedestal Mount

RS Pro anti-vibration pedestal mounts designed to take vertical load applied in both shear and compression to give maximum isolation from vibrating machinery. Suitable for use in a wide variety of applications including pumps, compressors, centrifugal fans and blowers.

RS Pro Anti-Vibration Mounts

Specifications
Attribute Value
Type Vibration Isolation Mount
Thread Size M12
Diameter 165mm
Foot Height 39mm
Overall Height 39mm
Foot Shape Cylindrical
Static Load Capacity 350
Material Natural Rubber
Shore Hardness 60 Shore A
Metalwork Zinc Plated Steel
Compression Load 350
Compression Deflection 5mm
Maximum Operating Temperature +100°C
Foot Colour Black
Series KPM
5 In stock for delivery within 5 working day(s) (Global Stock)
Price (ex. GST) Each
$ 32.44
(exc. GST)
$ 35.68
(inc. GST)
units
Per unit
1 - 4
$32.44
5 - 9
$31.63
10 +
$31.15
