RS PRO Round M10 Anti Vibration Mount with 220kg Compression Load

RS Stock No.:: 126-3579
Brand:: RS PRO

RS PRO Round M10 Anti Vibration Mount with 220kg Compression Load

3 In AU stock for next working day delivery

13 In Global stock for delivery within 10 working day(s)

Added

Price (ex. GST) Each

$77.47

(exc. GST)

$85.22

(inc. GST)

Units	Per unit
1 - 4	$77.47
5 - 24	$75.58
25 +	$62.19

RS Stock No.:: 126-3579
Brand:: RS PRO

Technical data sheets

Legislation and Compliance

COO (Country of Origin):: IN

Product Details

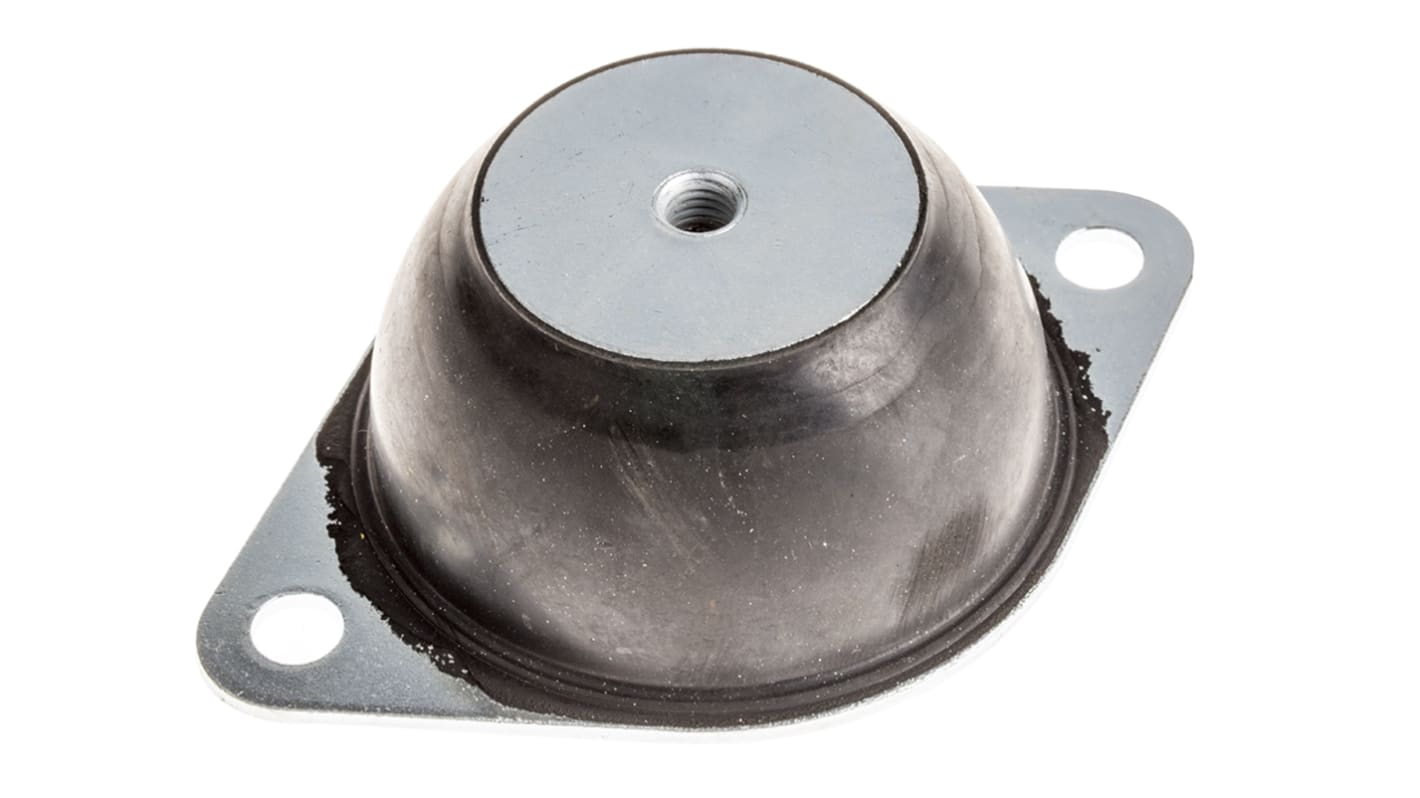

RS Pro Anti-Vibration Flange Mount

RS Pro anti-vibration flange mounts designed for use on static load applications to give maximum isolation from vibrating machinery. Suitable for use in a wide variety of applications including small pumps, engines and light electronic equipment.

Achieves high isolation values (both active and passive) of low frequency vibration
Attenuates shock loads due to its deflection capacity

RS Pro Anti-Vibration Mounts

Specifications

Attribute	Value
Thread Size	M10
Diameter	151mm
Foot Height	45mm
Overall Height	45mm
Static Load Capacity	220kg
Material	Natural Rubber
Metalwork	Zinc Plated Steel
Shore Hardness	60 Shore A
Foot Shape	Round
Compression Load	220kg
Series	SCM
Compression Deflection	10mm
Maximum Operating Temperature	+100°C
