RS PRO Cylindrical M20 Zinc Plated Steel Anti-Vibration Mount 395 Compression Load ,95mm dia. Natural Rubber +100°C

  • RS Stock No. 126-3570
  • Manufacturer RS PRO
Technical data sheets
Legislation and Compliance
RoHS Status: Exempt
COO (Country of Origin): IN
Product Details

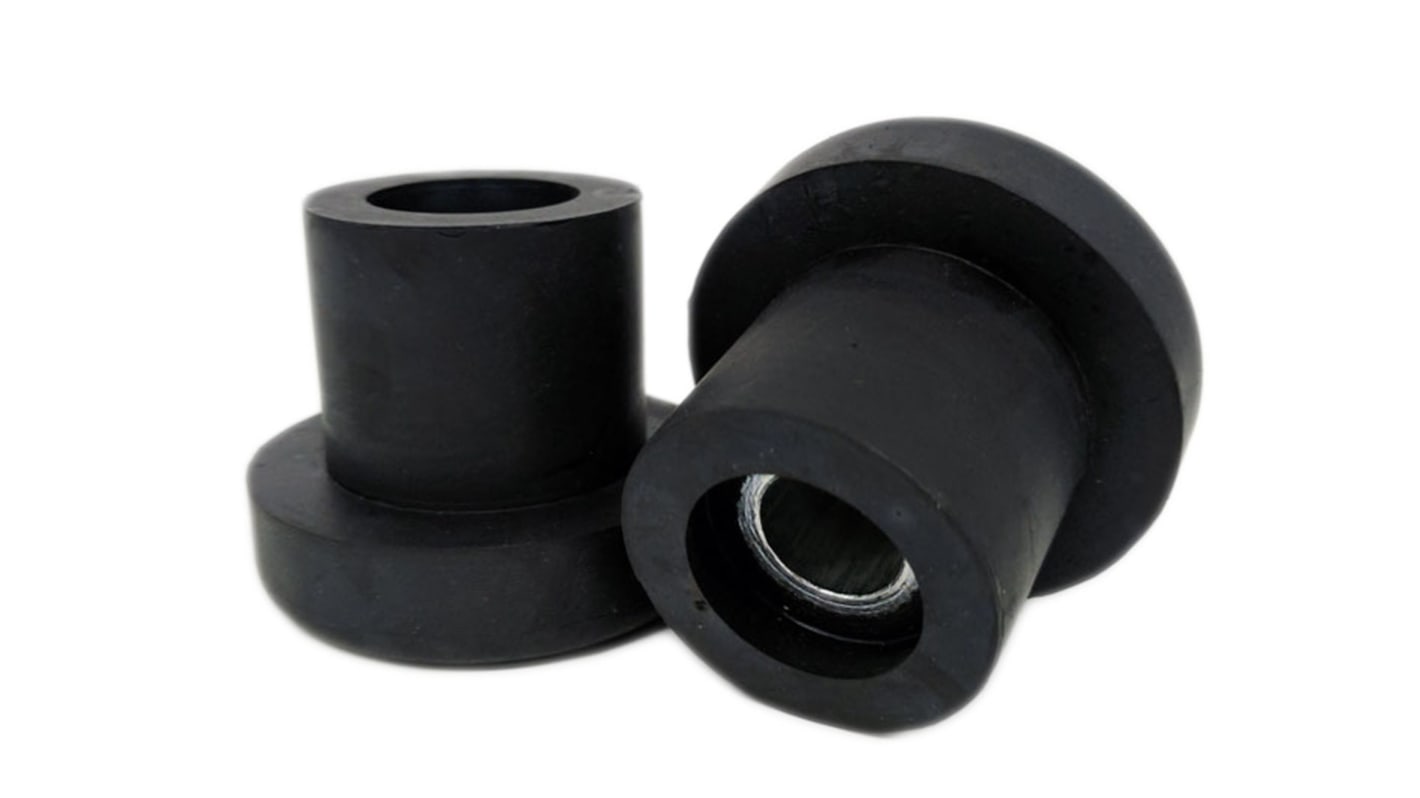

RS Pro Centre Bonded Mount

RS Pro anti-vibration centre bonded mounts desigend to isolate structure-born vibration, shock and noise. These mounts are made of a natural rubber compound, that is suitable for use in a wide variety of applications.

RS Pro Anti-Vibration Mounts

Specifications
Attribute Value
Type Centre Bonded Rubber Bush
Thread Size M20
Diameter 95mm
Foot Height 50.8mm
Overall Height 51mm
Foot Shape Cylindrical
Static Load Capacity 395
Material Natural Rubber
Shore Hardness 50 Shore A
Metalwork Zinc Plated Steel
Compression Load 395
Compression Deflection 1.7mm
Maximum Operating Temperature +100°C
Series TB
Foot Colour Black
Mounting Type Screw-in
5 In stock for delivery within 5 working day(s) (Global Stock)
Price (ex. GST) Each
$ 54.55
(exc. GST)
$ 60.01
(inc. GST)
units
Per unit
1 - 4
$54.55
5 - 9
$53.19
10 +
$52.35
