RS PRO Cylindrical M5 Zinc Plated Steel Anti-Vibration Mount 0.6-10 Compression Load ,10.2mm dia. Natural Rubber +100°C

  • RS Stock No. 126-3566
  • Manufacturer RS PRO
Technical data sheets
Legislation and Compliance
RoHS Status: Exempt
COO (Country of Origin): IN
Product Details

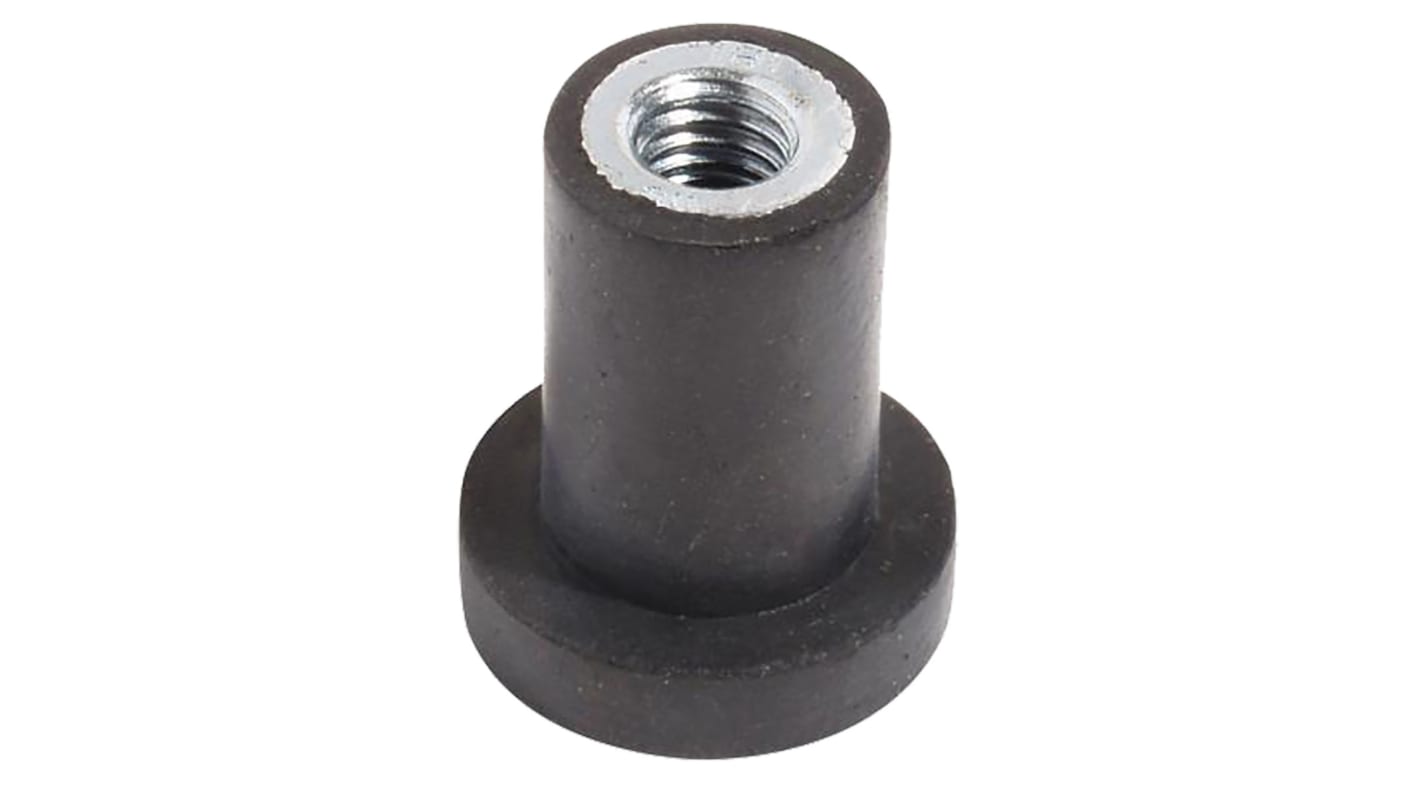

RS Pro Flexible Locator Mount

RS Pro anti-vibration flexible locator is an easy to fix mount. It is commonly used to isolate small electric motors and pumps. These mounts have also been proven to isolate noise from pipes in office environments.

RS Pro Anti-Vibration Mounts

Specifications
Attribute Value
Type Flexible Locator Anti Vibration Mount
Thread Size M5
Diameter 10.2mm
Foot Height 14.5mm
Overall Height 15mm
Foot Shape Cylindrical
Static Load Capacity 0.6-10
Material Natural Rubber
Shore Hardness 60 Shore A
Metalwork Zinc Plated Steel
Compression Load 0.6-10
Maximum Operating Temperature +100°C
Foot Colour Black
Mounting Type Screw-in
Series TH
39 In stock for delivery within 5 working day(s) (Global Stock)
Price (ex. GST) 1 Bag of 4
$ 20.87
(exc. GST)
$ 22.96
(inc. GST)
Bag(s)
Per Bag
Per unit*
1 - 4
$20.87
$5.218
5 - 9
$19.84
$4.96
10 +
$19.21
$4.802
*price indicative
