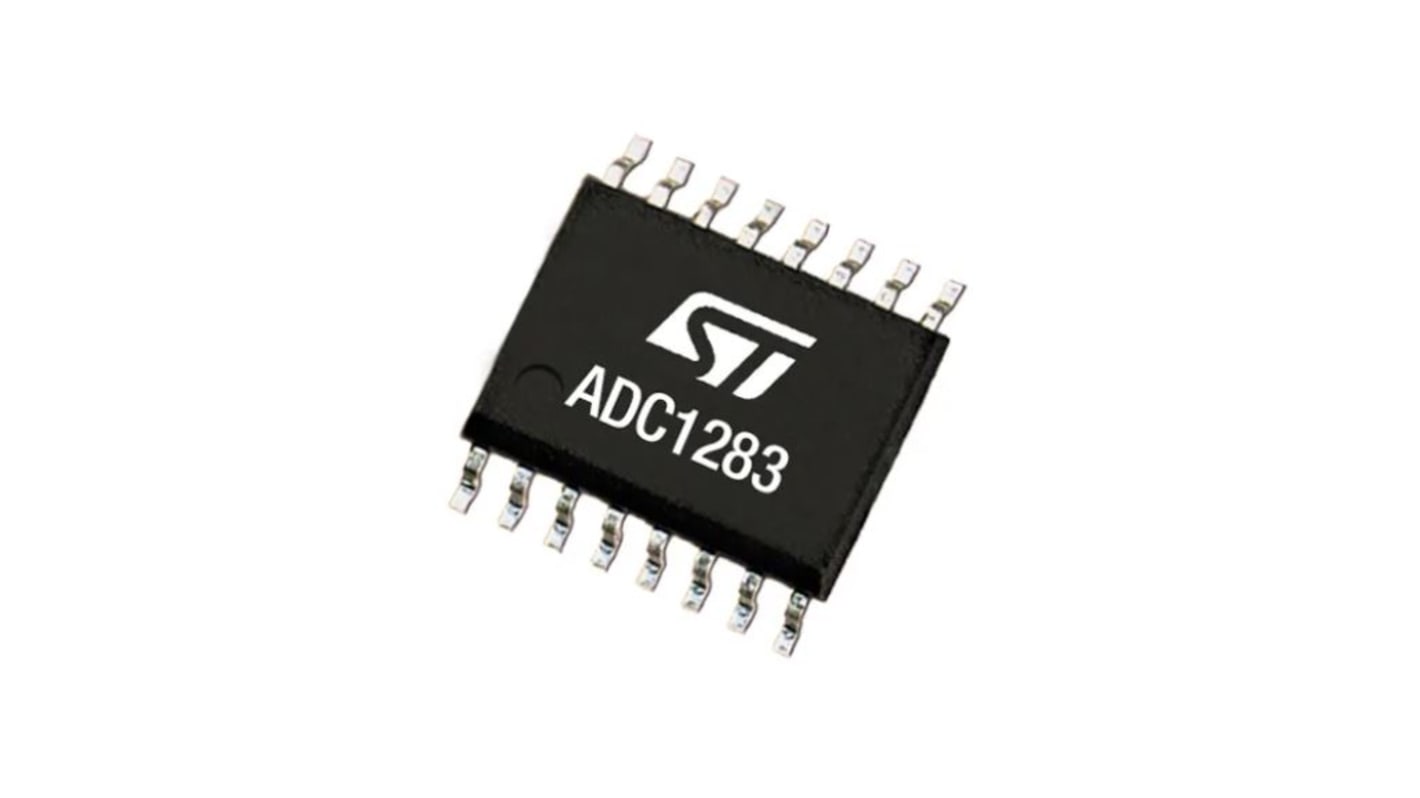

STMicroelectronics, ADC 200ksps, 16-Pin TSSOP
- RS Stock No.:
- 261-5024
- Mfr. Part No.:
- ADC1283IPT
- Brand:
- STMicroelectronics
On back order for despatch 18/09/2024, delivery within 10 working days from despatch date.
Added
Price (ex. GST) Each (On a Reel of 2500)
$2.414
(exc. GST)
$2.655
(inc. GST)
| Units | Per unit | Per Reel* |
| 2500 - 2500 | $2.414 | $6,035.00 |
| 5000 - 5000 | $2.173 | $5,432.50 |
| 7500 + | $1.955 | $4,887.50 |
| *price indicative | ||
- RS Stock No.:
- 261-5024
- Mfr. Part No.:
- ADC1283IPT
- Brand:
- STMicroelectronics
Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- PH
Product Details
The STMicroelectronics SAR ADC is a low-power, eight-channel pure CMOS 12-bit analog-to-digital converter specified for conversion from 50 ksps to 200 ksps, tested at 200 ksps. The architecture is based on a successive-approximation register with an internal track-and-hold cell. The ADC1283 features 8 single-ended multiplexed inputs. The output serial data is straight binary and is SPI compatible.
50 ksps to 200 ksps conversion rate
Power-down mode
4-wire SPI serial digital interface
Power-down mode
4-wire SPI serial digital interface
For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.
Specifications
Attribute | Value |
|---|---|
| Architecture | SAR |
| Sampling Rate | 200ksps |
| Package Type | TSSOP |
| Pin Count | 16 |
