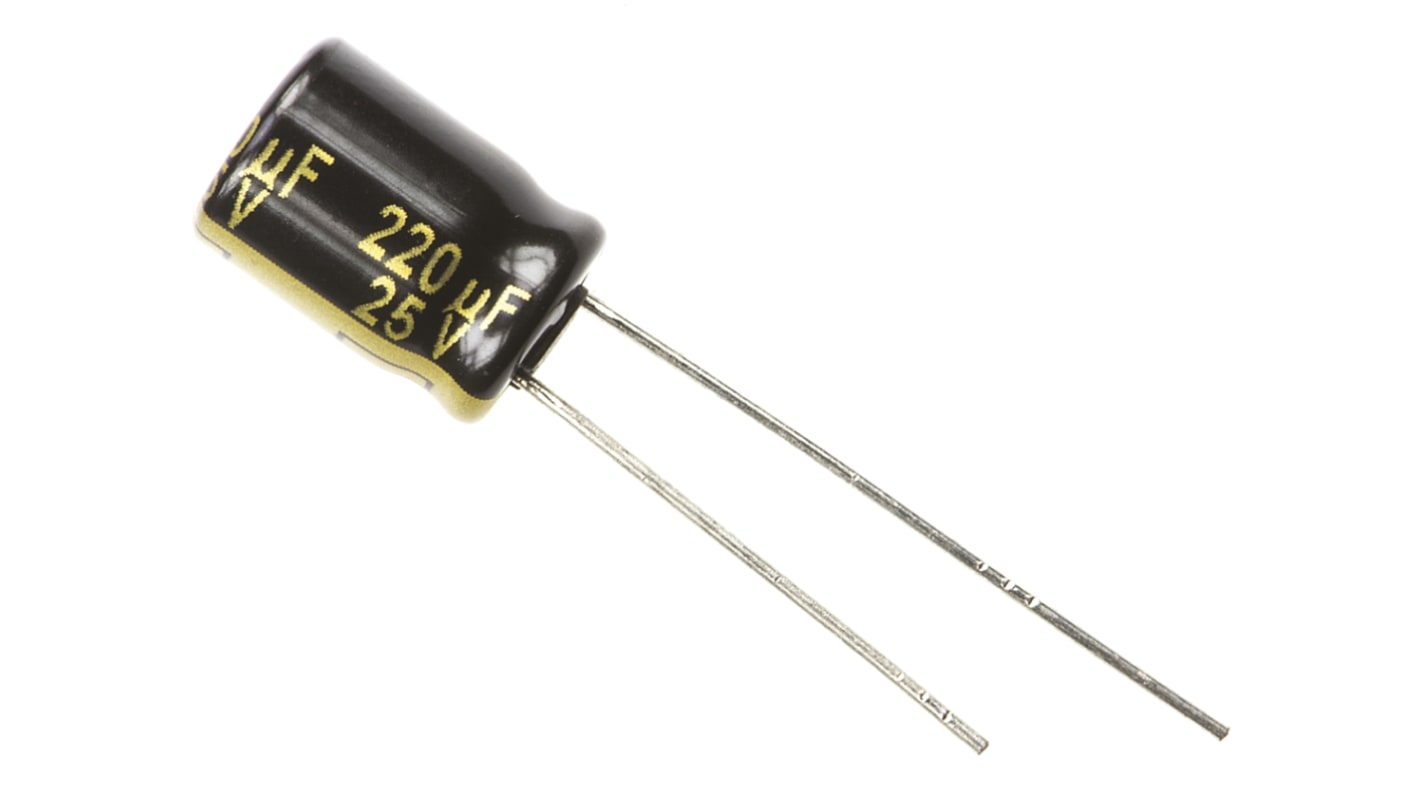

Panasonic 220μF 25V dc Aluminium Electrolytic Capacitor, Through Hole 8 (Dia.) x 11.5mm +105°C 8mm 3.5mm

  • RS Stock No. 526-1480
  • Mfr. Part No. EEUFM1E221
  • Manufacturer Panasonic
Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
Product Details

FM Series 25 V to 50 V

Panasonic FM Series Type A electrolytic capacitors offer low impedance (40% to 70% less than the Panasonic FC series) and high endurance. At +105°C, the endurance is 2000 hours to 7000 hours (depending on case size).

High reliability
Long life
High ripple current

Applications

Panasonic FM Series Type A electrolytic capacitors are recommended for use in industrial instruments due to their high reliability. Please note, they are not suitable for automotive applications.

Specifications
Attribute Value
Capacitance 220 µF
Voltage 25 V dc
Mounting Type Through Hole
Technology Electrolytic
Dimensions 8 (Dia.) x 11.5mm
Height 11.5mm
Minimum Operating Temperature -40°C
Diameter 8mm
Maximum Operating Temperature +105°C
Lifetime 3000h
Lead Pitch 3.5mm
Series FM Radial
Ripple Current 950mA
Tolerance ±20%
1720 In stock for delivery within 5 working day(s) (Global Stock)
Price (ex. GST) Each (In a Pack of 5)
$ 0.71
(exc. GST)
$ 0.78
(inc. GST)
units
Per unit
Per Pack*
5 - 45
$0.71
$3.55
50 - 245
$0.68
$3.40
250 - 495
$0.636
$3.18
500 - 995
$0.592
$2.96
1000 +
$0.568
$2.84
*price indicative
