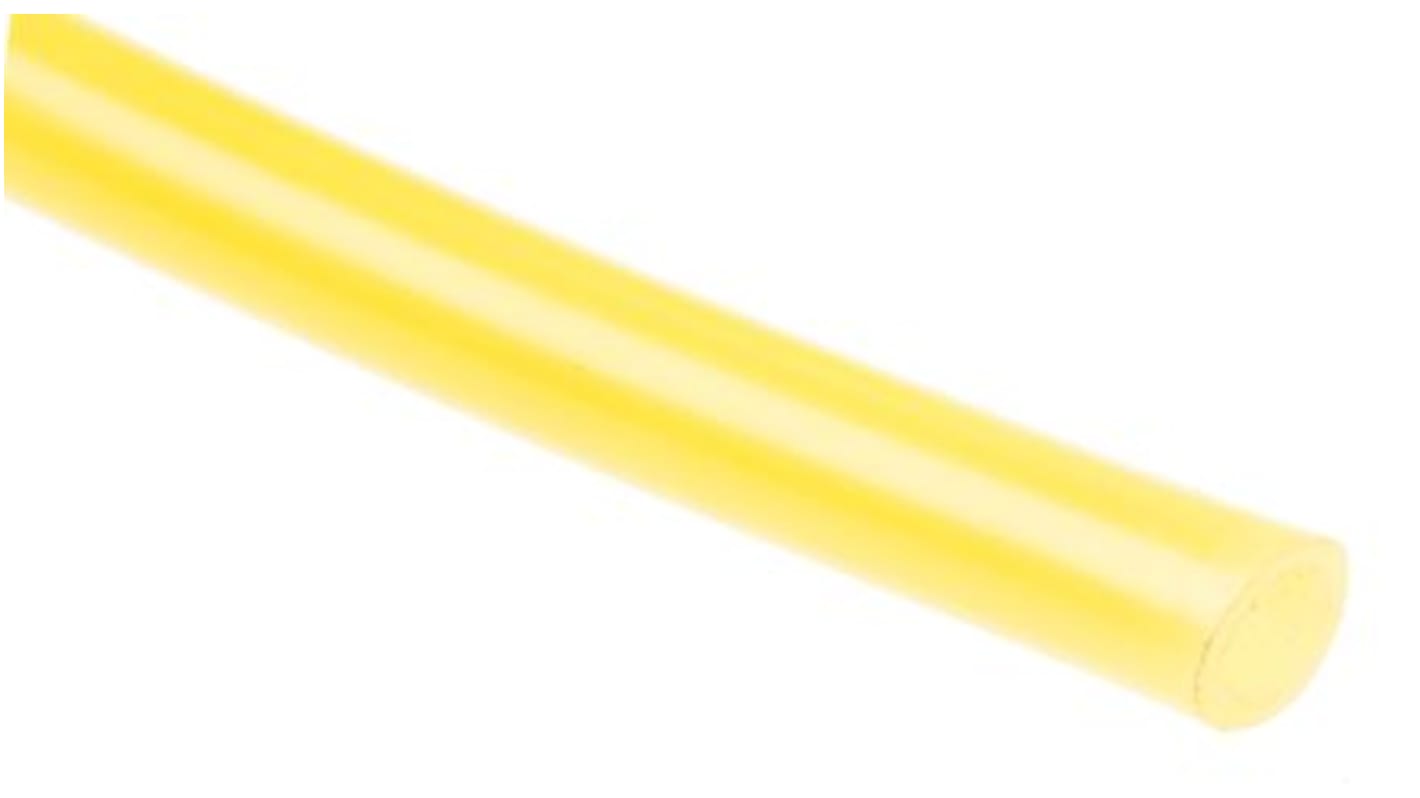

RS PRO Compressed Air Pipe Yellow Nylon 6mm x 30m NMF Series

RS Stock No.:: 483-4986
Brand:: RS PRO

RS PRO Compressed Air Pipe Yellow Nylon 6mm x 30m NMF Series

32 In Global stock for delivery within 10 working day(s)

Added

Price (ex. GST) 1 Reel of 30 Metre(s)

$125.23

(exc. GST)

$137.75

(inc. GST)

Reel(s)	Per Reel	Per Metre*
1 - 5	$125.23	$4.174
6 - 29	$122.62	$4.087
30 +	$100.93	$3.364
*price indicative

RS Stock No.:: 483-4986
Brand:: RS PRO

Technical data sheets

RS PRO Datasheet

Legislation and Compliance

COO (Country of Origin):: GB

Product Details

Standard Nylon Tube

Industrial nylon tubing in the established Eurolon range extruded from Polyamides 11 and 12 in flexible nylon.

Type 11: is ideal for low toxic or high temperature environments such as for breweries or applications involving food contact.

Type 12: is the standard stock option.

Features and Benefits

• Flexible, lightweight and durable over a wide temperature range

• Mirror smooth inner for improved flow

• Manufactured from heat and light stabilised Type 12 Nylon to precise tolerances

• Resistant to a wide range of chemicals

• High resistance to moisture absorption

• Silicone-free

• Excellent abrasion resistance

• 4:1 safety factor

Product Application Information

• Widely used by the pneumatics industry

• Suitable for use in air brake, fuel and lube applications as well as instrumentation and secondary air systems

• Ideal for production lines (industrial and automotive) requiring long lengths and minimum wastage

What are these hoses used for?

With the correct fittings, barbecues and foot pumps are some common items you would find utilising a rubber air hose. From schools, to laboratories and even the automotive industry are place where these hoses are found. As as example, some different types include:

• Air brakes for lorries, buses and other HGVs
• Workshop air compressors and paint sprayers
• Fuel pumps
• Jackhammers and other heavy duty construction tools
• Tyre inflation pumps - with connectors on both ends

Note

Stock 4835557 - Bend Radius 35mm

Approvals

BS 5409(pt1) 1976-ISO7628/1

Push-in System - Nylon Tube

All coils shown are non anti-static.

Specifications

Attribute	Value
Hose Outside Diameter	6mm
Hose Inside Diameter	4mm
Colour	Yellow
Material	Nylon
Application	Air Brake, Fuel & Lube Applications, Industrial & Automotive Production Lines, Instrumentation & Secondary Air Systems
Length	30m
Maximum Operating Pressure	24 bar
Manufacturer Series	NMF
Minimum Operating Temperature	-40°C
Maximum Operating Temperature	+80°C
Special Features	Abrasion Resistant
Number of Tubes	1
