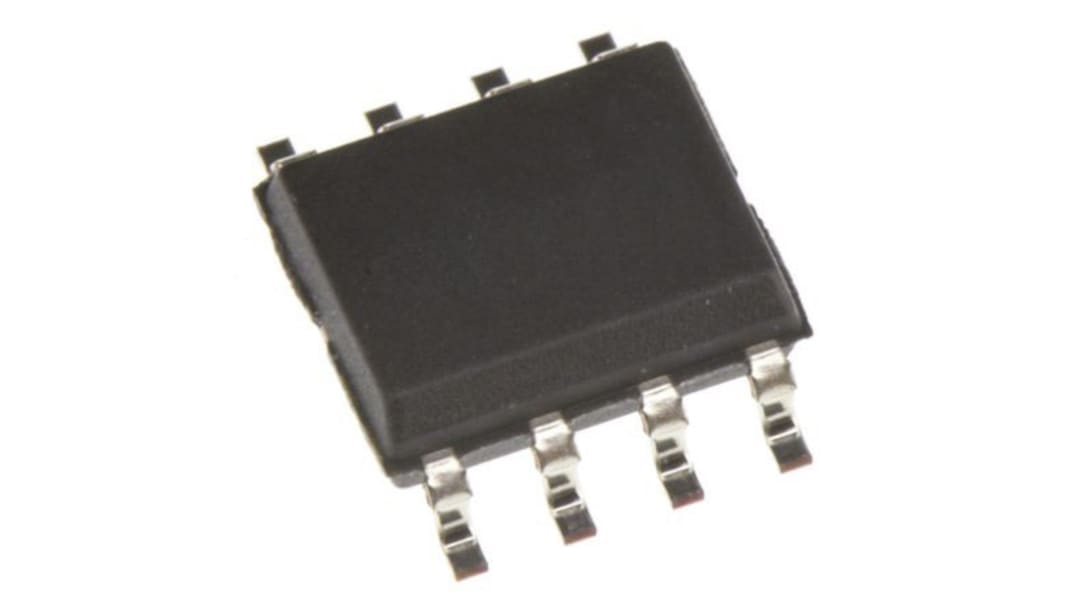

MAX7407ESA+,Active Filters

Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): US
Product Details

8th-Order Lowpass Elliptic Filter
Low Noise and Distortion -82dB THD + Noise (MAX7400)
Clock-Tunable Corner Frequency (1Hz to 10kHz)
100:1 Clock-to-Corner Ratio
Single-Supply Operation
+5V (MAX7400/MAX7403)
+3V (MAX7404/MAX7407)
Low Power
2mA (Operating Mode)
0.2μA (Shutdown Mode)
Available in 8-Pin SO and DIP Packages
Low Output Offset: ±5mV
Applications
ADC Anti-Aliasing
Air-Bag Electronics
CT2 Base Stations
Post-DAC Filtering
Speech Processing

Specifications
Attribute Value
Filter Type Low Pass Filter
Maximum Order 8th
Architecture Switched Capacitor
Cut-off Frequency 1 Hz → 10 kHz
Power Supply Type Single
Typical Single Supply Voltage 3 V
Number of Circuits 1
Mounting Type Surface Mount
Package Type SOIC
Pin Count 8
Dimensions 5 x 4 x 1.5mm
Height 1.5mm
Width 4mm
Series MAX7407
Minimum Operating Temperature -40 °C
Operating Temperature Range -40 → +85 °C
Maximum Operating Temperature +85 °C
Length 5mm
100 In stock for delivery within 5 working day(s) (Global Stock)
Price (ex. GST) Each (In a Tube of 100)
$ 9.272
(exc. GST)
$ 10.199
(inc. GST)
units
Per unit
Per Tube*
100 +
$9.272
$927.20
*price indicative
