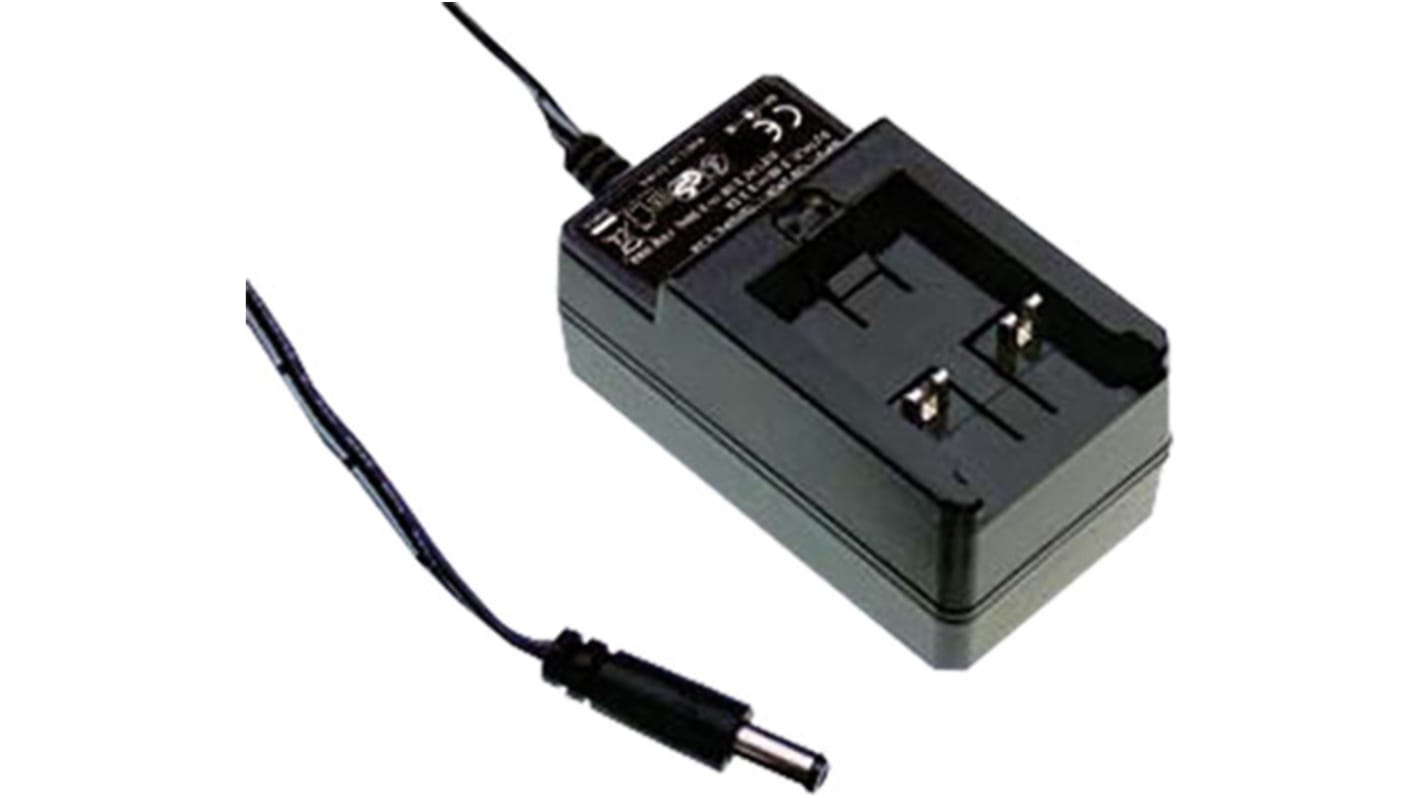

MEAN WELL 30W Plug-In AC/DC Adapter 18V dc Output, 1.66A Output
- RS Stock No.:
- 117-6602
- Mfr. Part No.:
- GE30I18-P1J
- Brand:
- MEAN WELL
1 In Global stock for delivery within 10 working day(s)
Added
Price (ex. GST) Each
$74.01
(exc. GST)
$81.41
(inc. GST)
| Units | Per unit |
| 1 - 9 | $74.01 |
| 10 - 49 | $72.18 |
| 50 + | $59.39 |
- RS Stock No.:
- 117-6602
- Mfr. Part No.:
- GE30I18-P1J
- Brand:
- MEAN WELL
Technical data sheets
Legislation and Compliance
Product Details
Mean Well GE30 Series Plug-In Power Supply
Mean Well GE30 series of wall mounting power adapters offer a compact & reliable power solution. The GE30 series comes equipped with interchangeable AC plug capability, meaning the power adapter range are suitable for UK, US, EU & AU regions (Not supplied). With the interchangeable nature in mind, the GE30 series would make an ideal power solution as a travel power adapter.
The series offers a wide input range of 90 V ac to 264 V ac, providing a power range suitable for a wide variety of electrical devices. Thanks to a high working efficiency of up to 87%, coupled with a very low no-load power consumption of below 0.075 W, the GE30 series complies with the latest USA Energy regulations.
The series offers a wide input range of 90 V ac to 264 V ac, providing a power range suitable for a wide variety of electrical devices. Thanks to a high working efficiency of up to 87%, coupled with a very low no-load power consumption of below 0.075 W, the GE30 series complies with the latest USA Energy regulations.
Plugs Not Included
Compatible plugs are:
• UK (1783436),
• Euro (1783437),
• US (1783438),
• Australian (1783435)
• Mixed plugs (1783439)
Features and Benefits
• Universal AC full range input.
• Level VI energy efficiency rating.
• Class 2 power without earth pin.
• Fully enclosed casing, constructed to adhere to 94V-0 flame retardant standards.
• Equipped with industry standard protection, such as short circuit, overload & over voltage.
• LED indication of power status.
Typical Applications
• Industrial equipment.
• Telecoms devices.
• Office facilities.
• Consumer electronic devices.
Compatible plugs are:
• UK (1783436),
• Euro (1783437),
• US (1783438),
• Australian (1783435)
• Mixed plugs (1783439)
Features and Benefits
• Universal AC full range input.
• Level VI energy efficiency rating.
• Class 2 power without earth pin.
• Fully enclosed casing, constructed to adhere to 94V-0 flame retardant standards.
• Equipped with industry standard protection, such as short circuit, overload & over voltage.
• LED indication of power status.
Typical Applications
• Industrial equipment.
• Telecoms devices.
• Office facilities.
• Consumer electronic devices.
Standards
EISA 2007 DoE & EU ErP.
Mean Well Plug-In Power Supply
Specifications
Attribute | Value |
|---|---|
| Adapter Type | Plug-In Adapter |
| Output Voltage | 18V dc |
| Input Voltage | 100 V ac, 110 V ac, 115 V ac, 120 V ac, 127 V ac, 220 V ac, 230 V ac, 240V ac |
| Output Current | 1.66A |
| Maximum Temperature | +50°C |
| Output Connector | 2.1 x 5.5 x 11 mm Centre Positive |
| Input Connector | Universal Plug |
| Number of Outputs | 1 |
| Power Rating | 30W |
| Cable Length | 1.5m |
| MTBF | 100kh |
| Standards Met | AS/NZS 60950.1, CCC GB4943, CE, CSA C22.2, cULus, EISA 2007/DoE, EN 55022, EN 61000-3-2,3, EN 61000-4-2,3,4,5,6,8,11, FCC Part 15, GB17625.1, GB9254 Class B, GS, MIL-HDBK-217F, TUV EN 60950 -1, UL 60950-1, VI |
| Width | 43mm |
| Type | AC/DC Adapter |
| Depth | 40.5mm |
| Minimum Temperature | -10°C |
| Series | GE30 |
| Energy Efficiency Level | VI |
| Load Regulation | ±3% |
| Length | 81mm |
