A Comprehensive Guide to RJ45

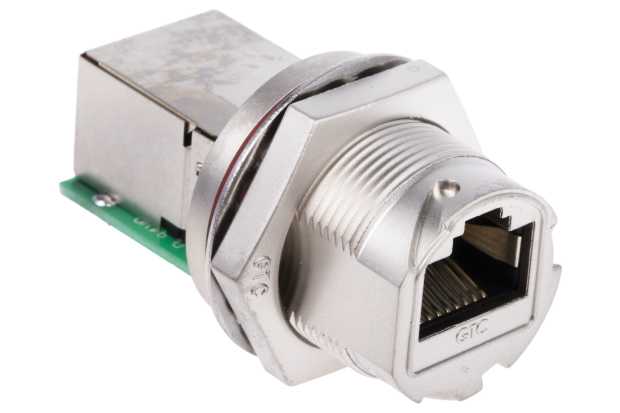

This guide explores what an RJ45 pinout wiring connector is, the different configurations and Ethernet cables used for RJ45 plugs, and how to troubleshoot common issues.

There are two primary wiring standards for RJ45 connectors: T568A and T568B. These standards define the colour code for the individual wires within the cable and how they are arranged within the connector.

• T568A: This wiring standard is commonly used in commercial installations and is the preferred standard in Australia. It's designed for backward compatibility with older one-pair and two-pair USOC wiring schemes, which can be helpful in some legacy systems.
• T568B: This wiring standard is often used in residential settings and is more prevalent in the United States. It's generally considered to offer better signal isolation and noise protection for newer networking systems.

While both A and B standards achieve the same functionality, it is crucial to maintain consistency within a network. In Australia, the T568A configuration is typically the default standard for RJ45 wiring.

The primary difference between T568A and T568B RJ45 wiring lies in the placement of the coloured wires within the connector. Each standard specifies a unique arrangement of the eight wires, affecting the signal pairing and transmission characteristics.

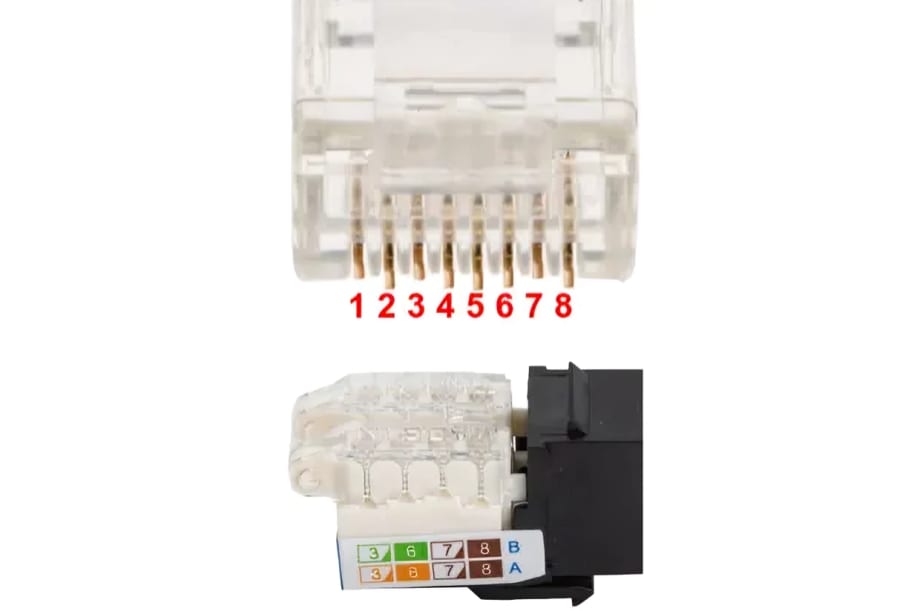

To easily identify the difference between the A and B connectors, remember that the positions of the orange and green cable pairs are swapped. In T568A, the orange pair occupies pins 3 and 6, while the green pair is on pins 1 and 2. In T568B, the green pair takes pins 3 and 6, and the orange pair is on pins 1 and 2.

While both standards are functionally equivalent, T568A is generally preferred for commercial installations and is the standard in Australia, offering backward compatibility with older wiring schemes. T568B is more common in residential settings and is often used in the United States, potentially offering better signal isolation in modern networks.

A straight-through cable is a type of Ethernet cable where the wiring configuration is identical on both ends of the cable. This means that each wire in one connector is connected to the corresponding pin in the other connector.

Applications of straight-through cables for RJ45 include:

• Office Networks: Connecting computers to a central switch or router for communication and data sharing.
• Security Systems: Connecting security cameras to network video recorders (NVRs) for remote monitoring.
• Retail Environments: Connecting point-of-sale (POS) terminals to central servers for transaction processing.
• Industrial Automation: Connecting programmable logic controllers (PLCs) and sensors to control networks for monitoring and remote operation of industrial processes.

RJ45 Connector T568A PIN - Straight-Through

A crossover cable is a type of Ethernet cable where the transmit and receive pairs are swapped between the two ends of the cable. This means that the wires connected to pins 1 and 2 on one connector are connected to pins 3 and 6 on the other connector, and vice versa at the socket.

Applications of crossover cables for RJ45 include:

• Direct Computer Connection: Connecting two laptops for ad-hoc file sharing or network gaming without the need for a network switch or router.
• Network Device Interconnection: Connecting two switches or routers to expand network capacity.
• Legacy Device Compatibility: Connecting legacy devices that may not support auto-MDIX, such as older printers or network-attached storage (NAS) devices, to modern computers or networks.

RJ45 Connector T568B PIN - Crossover

RJ45 connectors are compatible with a variety of Ethernet cables, each offering different performance characteristics and suitable for various applications. The most common categories for RJ45 wiring used in Australia include Cat5e, Cat6, Cat6A, Cat7, and Cat8. Understanding their uses can determine if you should use a Cat5e or Cat6 cable or opt for a higher grading.

• Cat5e: A common and cost-effective choice for home and small office networks, Cat5e cables are readily available and compatible with most RJ45 connectors.
  • Speed: Up to 1 Gigabit per second.
  • Range: Up to 100 meters.
  • Applications: Often used for basic networking in offices, connecting computers, printers, and other devices.
• Cat6: Offering improved performance and reduced crosstalk compared to Cat5e, Cat6 is suitable for higher bandwidth applications and is backwards-compatible with Cat5e systems.
  • Speed: Up to 10 Gigabits per second (over shorter distances).
  • Range: Up to 100 meters.
  • Applications: Used in industrial automation for connecting PLCs, sensors, and other devices requiring faster data transfer rates.
• Cat6A: Providing even better performance and significantly reduced crosstalk, Cat6A is ideal for demanding networks and future-proofing installations.
  • Speed: Up to 10 Gigabits per second over longer distances.
  • Range: Up to 100 meters.
  • Applications: Suitable for high-bandwidth applications in data centres and enterprise networks, supporting high-speed data transfer and PoE.
• Cat7: Offering higher bandwidth and shielding for improved noise immunity, Cat7 is suitable for environments with high electromagnetic interference.
  • Speed: Up to 10 Gigabits per second.
  • Range: Up to 100 meters.
  • Applications: Used in industrial environments with high levels of electromagnetic interference, such as manufacturing plants or power equipment.
• Cat8: The latest and highest-performing Ethernet cable category, Cat8 offers significant improvements in speed and bandwidth.
  • Speed: Up to 40 Gigabits per second (over shorter distances).
  • Range: Up to 30 meters.
  • Applications: Ideal for high-density data centres and demanding applications requiring the fastest data transfer speeds.

In addition to data transmission, RJ45 connectors also support Power over Ethernet (PoE). This technology allows electrical power to be transmitted alongside data over a single Ethernet cable, eliminating the need for separate power supplies for certain devices.

Devices powered by PoE include:

• VoIP phones
• Wireless access points
• Security cameras
• IPTV decoders
• LED lighting systems

When using Ethernet cables with RJ45 connectors, it's important to be mindful of the maximum recommended cable length. For most common categories like Cat5e and Cat6, the maximum length is 100 meters.

Exceeding this limit can cause attenuation—where the signal strength weakens over long distances—resulting in signal degradation and reduced network performance.

In environments with potential electromagnetic interference (EMI), such as industrial settings or areas with high electrical noise, shielding on your RJ45 wiring using graded cable sleeves will help protect the data signals from interference, ensuring reliable network connectivity.

For outdoor installations in Australia, where exposure to harsh sunlight and weather conditions is common, consider using UV-resistant or weatherproof Ethernet cables. These cables are designed to withstand the damaging effects of UV radiation and moisture, ensuring long-term performance and reliability.

To ensure safety and compliance with local regulations, it's important to ensure that the Ethernet cables and RJ45 connectors you purchase are RCM-compliant (Regulatory Compliance Mark). The RCM indicates that the product meets Australian safety and electromagnetic compatibility (EMC) standards.

Ensure compliance with:

• AS/NZS 3080:2013: Specifies requirements for the design and installation of customer cabling, including Ethernet cabling, to ensure safety and performance.
• Australian Communications and Media Authority (ACMA): Regulates telecommunications and radiocommunications in Australia, including the use of Ethernet cables and connectors. Compliance ensures that your network equipment and wiring operates within the allowed frequency bands and does not cause interference with other devices.

Troubleshooting RJ45 connections involves systematically checking various aspects of the cable, connectors, and devices to identify and resolve connectivity issues. Common problems include no connectivity, intermittent connectivity, or slow network speeds.

1. Check the Wiring Sequence at Both Ends

Ensure that the RJ45 connectors at both ends of the cable are wired correctly according to the T568A standard (the preferred standard in Australia). Use a wiring diagram of the connectors and pins to verify the colour code and pinout configuration.

2. Verify Pin-to-Pin Continuity

Use an Ethernet tester to check for continuity between corresponding pins on both ends of the cable. This verifies that each wire is properly connected and there are no breaks or shorts in the cable.

3. Inspect Connectors for Damage or Wear

Examine the RJ45 connectors for any physical damage, such as bent pins, cracks, frayed wiring, or corrosion. Damaged connectors can cause poor contact and signal degradation. If damage is found, replace the connector or the entire cable.

4. Check the Devices and Ports

Ensure that the devices connected to the cable are powered on and functioning correctly. Also, check the Ethernet ports on the devices for any signs of damage or debris. Try connecting the cable to different ports to rule out a faulty port.

5. Replace Faulty Cables & Those Exceeding 100m

If the cable is damaged or exceeds the maximum recommended length of 100 meters, replace it with a new cable of the appropriate length and category. Long cables can cause signal attenuation, leading to poor network performance.

6. Check for Interference

If you suspect interference is affecting the signal, try moving the cable away from potential sources of EMI, such as power cables or electrical equipment. Consider using shielded cables to reduce interference.

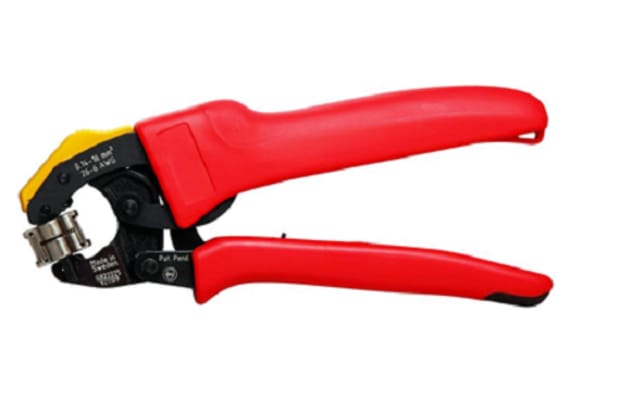

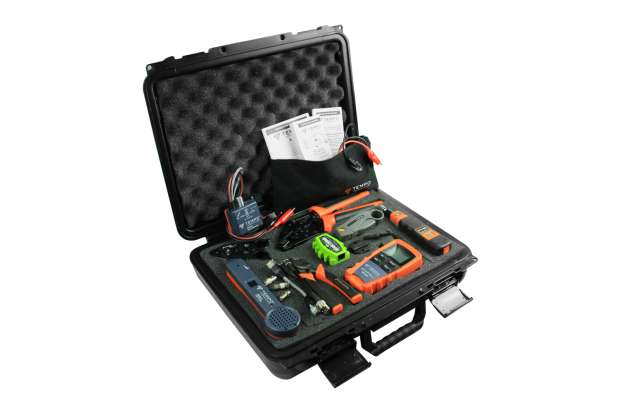

Working with RJ45 cables often requires specialised tools to ensure proper installation and termination. RS Australia offers a range of tools and equipment to help you effectively manage your RJ45 connections, from crimping tools to complete connector tool kits. These tools simplify the process of attaching connectors, troubleshooting wiring issues, and maintaining the integrity of your network connections.
